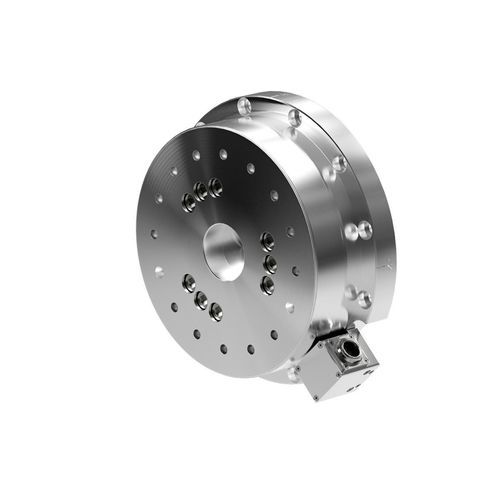

Force and torque sensor Omega250

Product Overview

• 6-axis force/torque sensing – Measures force and torque in all six degrees of freedom (Fx, Fy, Fz, Tx, Ty, Tz) with ranges up to 16000 N force and 2000 Nm torque suitable for demanding industrial applications.
• Form factor – Industrial-grade design with embedded electronics for broad platform compatibility, including precision use cases such as surgical robotics and automated assembly.
• Analog output (+/-10V) – Simple real-time force and torque feedback compatible with PLCs, controllers and data acquisition systems.
• Extremely high strength – EDM wire-cut from high yield-strength stainless steel. Maximum allowable overloads range from 10.1 to 40.8 times rated capacities depending on axis.
• High signal-to-noise ratio – Silicon strain gages deliver ~75× stronger signals than conventional foil gages; onboard amplification reduces noise distortion.
• IP60 rated – Dust-tight protection for dry, particulate-heavy environments. Variants available up to IP65/IP68 for splash and immersion use.

Specifications (concise table representation)
Measurement Range : 16000 N / 2000 Nm

Sensing Range
X/Y Force Sensing Range : ±16000 N
X/Y Torque Sensing Range : ±2000 Nm
Z Force Sensing Range : ±32000 N
Z Torque Sensing Range : ±2000 Nm

Resolution
X/Y Force Sensing Resolution : 4 N
X/Y Torque Sensing Resolution : 0.5 Nm
Z Force Sensing Resolution : 8 N
Z Torque Sensing Resolution : 0.5 Nm

Overload
Force X/Y Single Axis Overload : ±160000 N
Force Z Single Axis Overload : ±330000 N
Torque X/Y Single Axis Overload : ±21000 Nm
Torque Z Single Axis Overload : ±25000 Nm

Stiffness
Force X/Y Calculated Stiffness : 4.2×10^8 N/m
Torque X/Y Calculated Stiffness : 3.0×10^6 Nm/rad
Force Z Calculated Stiffness : 5.6×10^8 N/m
Torque Z Calculated Stiffness : 6.2×10^6 Nm/rad

Resonant Frequency
Fx/Fy/Tz Resonant Frequency : 780 Hz
Fz/Tx/Ty Resonant Frequency : 770 Hz

Other
Height : 94.9 mm
Weight : 31.8 kg
Diameter : 295 mm
Interface Plate Rating : IP60 (variants available IP65, IP68)
Communication Interface : Analog (+/-10V) (multiple interface variants available across product family)
Accuracy (% Full Scale) : 0.75 – 1.25%
Latency : <1 ms
Sample Rate : 40 kHz (effective per-axis sample rate depends on DAQ device total data rate / 6)
Connector : 20-pin Lemo

Included product features (summary)

• 6-axis measurement of forces and torques (Fx, Fy, Fz, Tx, Ty, Tz)
• Multiple interface and IP-rating variants (Analog +/-10V, EtherCAT/RS485, Ethernet/RS422, EtherNet/IP & CAN, PROFINET; IP20/IP60/IP65/IP68 options across variations)
• High overload tolerance and robust stainless-steel construction
• High SNR via silicon strain gages with onboard amplification
• 20-pin Lemo connector for signal and power

Technical specifications

• Model family: Omega250
• Measurement Range: 16000 N / 2000 Nm
• Sensing ranges: X/Y ±16000 N; Z ±32000 N; X/Y/Z Torque ±2000 Nm
• Resolution: X/Y Force 4 N; Z Force 8 N; Torque 0.5 Nm
• Overload (single axis): Force X/Y ±160000 N; Force Z ±330000 N; Torque X/Y ±21000 Nm; Torque Z ±25000 Nm
• Calculated stiffness: Force X/Y 4.2×10^8 N/m; Force Z 5.6×10^8 N/m; Torque X/Y 3.0×10^6 Nm/rad; Torque Z 6.2×10^6 Nm/rad
• Resonant frequencies: Fx/Fy/Tz 780 Hz; Fz/Tx/Ty 770 Hz
• Physical: Height 94.9 mm; Diameter 295 mm; Weight 31.8 kg
• Interface plate rating: IP60 standard (options for IP65, IP68)
• Communication: Analog (+/-10V) (product family supports multiple digital/network interfaces in other variants)
• Connector: 20-pin Lemo
• Accuracy: 0.75 – 1.25% full scale (axis-dependent)
• Latency: <1 ms
• Sample rate: 40 kHz (effective per-axis rate determined by DAQ device)
