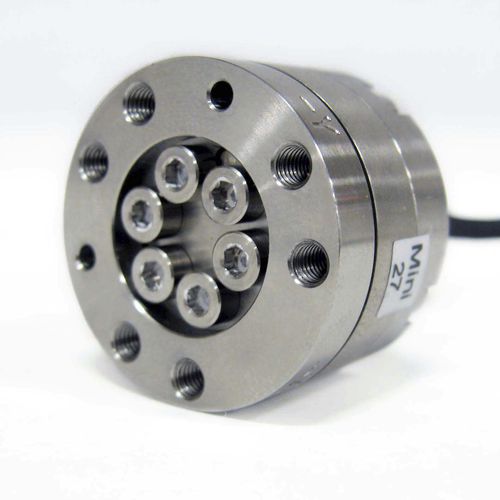

Force and torque sensor Mini27 Titanium

-Non-Ferrous Materials: Titanium construction. -Very-Fine Resolution: Can resolve down to 1.13 gram-force. -Extremely-High Strength: EDM wire-cut from grade 5 titanium. Maximum allowable single-axis overload values are 7.4 to 15.0 times rated capacities. -High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion. Typical Applications -Biomechanical research -Measurements in highly magnetic environments -Medical applications Single-Axis Overload Fxy - ±1500 N Fz - ±4600 N Txy - ±30 Nm Tz - ±40 Nm Stiffness (Calculated) X-axis & Y-axis forces (Kx, Ky) - 3.1x107 N/m Z-axis force (Kz) - 6.4x107 N/m X-axis & Y-axis torque (Ktx, Kty) - 4.5x103 Nm/rad Z-axis torque (Ktz) - 6.5x103 Nm/rad Resonant Frequency Fx, Fy, Tz - 4900 Hz Fz, Tx, Ty - 5000 Hz Physical Specifications Weight* - 0.0334 kg Diameter* - 27 mm Height* - 18.2 mm
