Mechanical coupler UC-GL2
for industrial applicationsmulti-portmodular

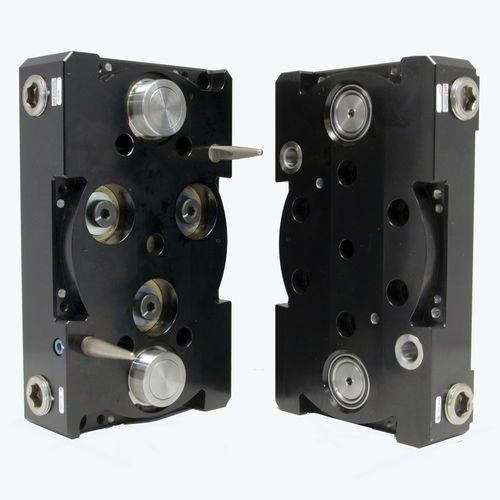

Mechanical coupler - UC-GL2 - ATI Industrial Automation - for industrial applications / multi-port / modular
Mechanical coupler - UC-GL2 - ATI Industrial Automation - for industrial applications / multi-port / modular

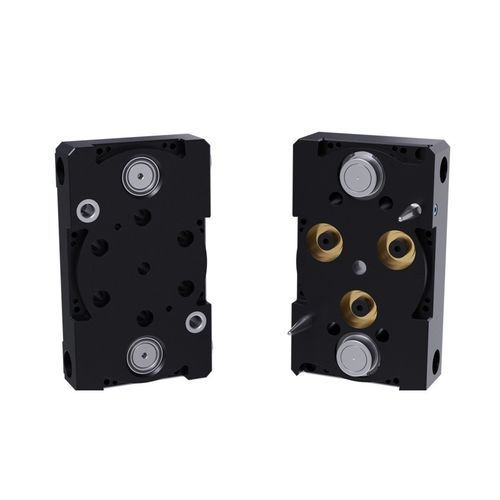

Mechanical coupler - UC-GL2 - ATI Industrial Automation - for industrial applications / multi-port / modular - image - 2
Add to favorites
Compare this product

Characteristics

Type
mechanical
Other characteristics
for industrial applications, multi-port, modular

Description

Product Overview
  • (4) mounting flats attach standard ATI ledge-mount utility modules, enabling multiple tool orientations
  • Integrated compliance ensures reliable coupling under misalignment
  • Drive cylinders and linear actuators compatible
  • Hardened stainless steel alignment pins for repeatable registration
  • Direct DL4 module mount on flats A and C


Product Features
  • (4) mounting flats for standard ATI ledge-mount utility modules
  • Built-in X/Y and Z compliance to accommodate positioning tolerances
  • Supports drive cylinders and linear actuators for actuation
  • Hardened stainless alignment pins reduce wear and ensure accuracy
  • Allows direct mounting of DL4 module on flats A and C


Technical Specifications
  • Model Number: UC-GL2
  • Compliance Type: Integrated
  • Locking Type: None
  • Minimum Coupling Force: 2200 N (≈500 lbf)
  • Minimum Operating Temperature: -28.9 °C (-20 °F)
  • Maximum Operating Temperature: 65.6 °C (150 °F)
  • Module Flats: 4 (A, B, C, D)
  • Module Type: Heavy
  • Number of Ports: 2
  • Port Size: 3/4 in
  • Port Type: Sealed
  • Weight: not specified
  • X/Y Compliance Range: ±4.1 mm (±0.16 in)
  • Z Compliance: 2 mm (0.079 in)
