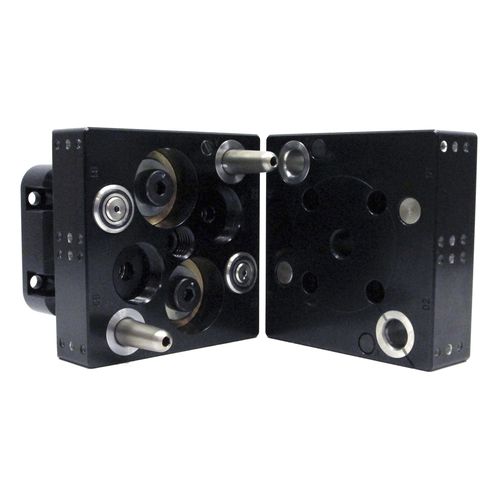

Pneumatic coupler UC-GK2

for sensorsI/Omulti-port

Product Overview

• Utility coupler designed for quick connection of standard ATI utility modules.
• Compact body with four mounting flats for stable module attachment.
• Integrated compliance mechanism to ensure reliable coupling under misalignment.
• Options for presence sensors to detect tool-side connection.
• Compatible with drive cylinders and linear actuators for actuation.
• Hardened stainless steel alignment pins for repeatable positioning.

Product Features

• (4) mounting flats to accept standard ATI utility modules.
• Integrated X/Y and Z compliance (±4.1 mm X/Y, 2 mm Z) to accommodate alignment variation.
• No locking mechanism required (locking type: None).
• Two integrated ports with checked-type connectors.
• Operational temperature range suitable for industrial applications (-28.9 °C to 65.6 °C).
• Minimum coupling force: 980 N.

Specifications (table)
Specification : Value
Compliance Type : Integrated
Locking Type : None
Minimum Coupling Force : 980 N
Minimum Operating Temperature : -28.9 °C
Maximum Operating Temperature : 65.6 °C
Module Flats : 4
Module Type : Medium
Number of Ports : 2
Port Type : Checked
Weight :
X/Y Compliance Range : ±4.1 mm
Z Compliance : 2 mm

Technical specifications

• Model Number: UC-GK2
• Compliance Type: Integrated
• Locking Type: None
• Minimum Coupling Force: 980 N
• Operating Temperature Range: -28.9 °C to 65.6 °C
• Module Flats: 4
• Module Type: Medium
• Number of Ports: 2
• Port Type: Checked
• X/Y Compliance Range: ±4.1 mm
• Z Compliance: 2 mm
