Pneumatic coupler UC-GA2

multi-portfor industrial applicationscompact

Product overview

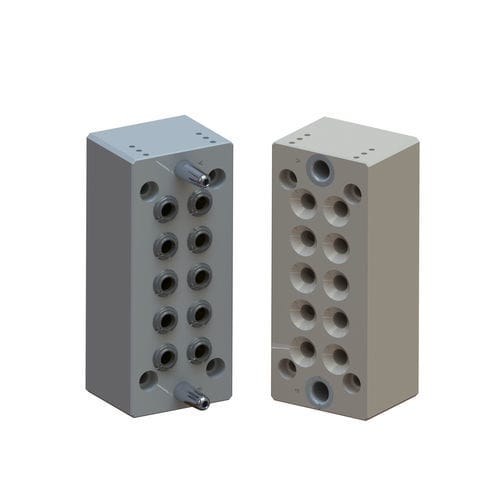

The UC-GA2 utility coupler provides integrated pass-through pneumatic connections and a two-flat mounting interface for modular utility modules. Designed for medium modules and factory automation where multiple air lines must be routed through a compact coupling.

Features

• (2) mounting flats for Standard ATI Utility Modules
• Ten integrated pass-through air ports
• Port connection options: G1/4 or 3/8 NPT
• Hardened stainless steel alignment pins for repeatable mating
• Drive cylinders and linear actuators available as compatible accessories
• Adapter plate required to mount to ATI Drive Cylinders

Technical specifications

• Model number: UC-GA2
• Module type: Medium
• Module flats: 2
• Number of ports: 10 (pass-through)
• Port connections: G1/4 or 3/8 NPT
• Minimum coupling force: 1400 N (≈315 lbf)
• Operating temperature: -28.9 °C to 65.6 °C (-20 °F to 150 °F)
• Weight: 4.1 kg (≈9 lb)
• Alignment: Hardened stainless steel alignment pins
• Compliance type / Locking type: None

Mounting and compatibility
The UC-GA2 mounts to standard ATI utility modules via the two mounting flats. An adapter plate is required to attach the coupler to ATI Drive Cylinders. Confirm port size and thread type (G1/4 or 3/8 NPT) with your pneumatic system specifications before installation. Contact your ATI representative for compatible drive cylinders and linear actuators.
