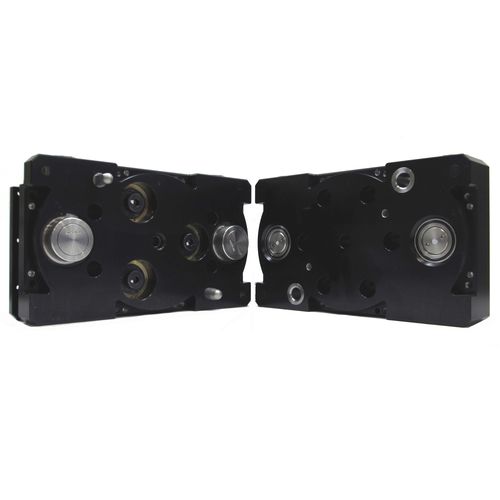

Electronic coupler UC-GL5mechanicalfor sensorsmulti-port
Add to favorites
Compare this product
Characteristics
- Type
- electronic, mechanical
- Applications
- for sensors
- Other characteristics
- multi-port, for industrial applications
Description
Product features
Specifications
Compatibility and options
- (4) mounting flats for ATI standard ledge-mount utility modules
- Integrated engineered compliance to ensure reliable coupling
- Optional sensors to detect tool-side presence
- Drive cylinders and linear actuators available as options
- Hardened stainless-steel alignment pins
- Direct-mount capability for DL4 module on flats B and D
Specifications
- Model Number: UC-GL5
- Compliance Type: Integrated
- Locking Type: None
- Minimum Coupling Force: 2200 N
- Operating Temperature Range: -28.9 °C to 65.6 °C
- Module Flats: 4
- Module Type: Heavy
- Number of Ports: 2 (Checked)
- Port Type: Checked
- Weight: 8.4 kg
- X/Y Compliance Range: ±4.1 mm
- Z Compliance: 2 mm
Compatibility and options
- Sensors, drive cylinders and linear actuators available for integration
- Designed for ledge-mount utility modules and direct DL4 mounting on flats B and D
- Intended for heavy-module configurations in industrial environments
