Hydraulic coupler UC-GH3

mechanicalpneumaticfor pipes

Product overview

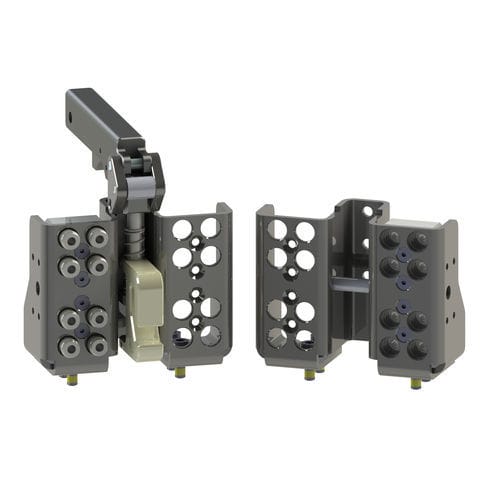

The UC-GH3 is a manual utility coupler designed to connect multiple lines simultaneously in industrial assemblies. Its compact body suits tight installations while the patented latch secures utilities during engagement. The unit integrates eight M6 pass-through ports and is rated for 30,000 cycles. Operating range supports common industrial environments.

Key features

• Manual multi-line coupling for simultaneous connection of up to eight lines
• Compact body for space-constrained installations
• Patented latch mechanism for secure retention during coupling
• Eight M6 pass-through ports (pass‑thru)
• Rated life: 30,000 cycles

Specifications

• Model number: UC-GH3
• Compliance type: None
• Locking type: Manual
• Number of ports: 8 (M6 pass-through)
• Port type: Pass Thru
• Rated life: 30,000 cycles
• Operating temperature: -28.9 °C (-20 °F) to 65.6 °C (150 °F)
• Weight: 2 kg (4.41 lb)
• Minimum coupling force: Not specified
• X/Y compliance range: Not specified
• Z compliance: Not specified

Technical details

• Suitable for industrial utility connections and modular assemblies
• Compact footprint eases integration into panels and manifolds
• Maintenance: inspect latch and ports regularly for wear
• Typical applications: pneumatic/hydraulic service routing, utility manifolds, test rigs
