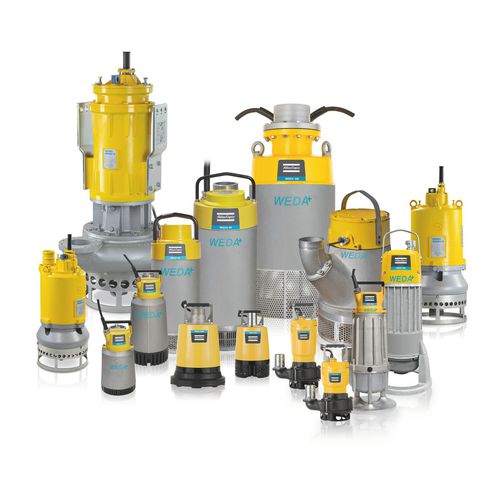

Compact pump WEDA series
waterslurryelectric

compact pump
compact pump
compact pump
compact pump
compact pump
compact pump
compact pump
Add to favorites
Compare this product


Characteristics

Fluid
water, slurry
Operation
electric
Priming
submersible
Technology
impeller
Mobility
mobile
Domain
for water treatment
Applications
handling, drainage, dewatering, drainage, level control
Protection level
abrasion-resistant
Other characteristics
compact, small, automatic, adjustable, modular, built-in, seal
Flow

Max.: 21,000 l/min
(5,547.6131 us gal/min)

Min.: 120 l/min
(31.70065 us gal/min)

Head

Max.: 86 m
(282'01" )

Min.: 11.3 m
(37'00" )

Power

Max.: 75 kW
(101.97 hp)

Min.: 0.4 kW
(0.54 hp)

Width

Max.: 935 mm
(36.81 in)

Min.: 182 mm
(7.17 in)

Height

Max.: 546 mm
(21.5 in)

Min.: 340 mm
(13.39 in)

Weight

Max.: 1,070 kg
(2,358.95 lb)

Min.: 9 kg
(19.84 lb)

Description

WEDA small electric submersible pumps and accessories are designed for an extensive range of dewatering applications, across multiple industries. WEDA water pumps feature a built-in starter and motor protection system, along with optional automatic level control. Adjustable wear-resistant rubber diffusors and hardened high-chrome impellers ensure durability in tough environments. Dewatering pumps At Atlas Copco, we understand pumps, their applications and, most importantly, the people using them. We have a complete range of high-quality and lightweight electric submersible pumps designed specifically for drainage, sludge and slurry pumping applications and available in global voltages. WEDA pumps are made for durability. The unique sealing system and modular design make them among the most flexible pumps on the market. Easy to use and maintain, WEDA pumps promise optimal performance. The WEDA seal system is designed to provide the optimum maintenance solution and can be easily fitted at the job site. Electric submersible pump applications We understand the dewatering needs of our customers and they spread out based on geography and application. Accordingly our submersible range is developed for Drainage (D), Sludge (S)and Slurry (L) applications. These applications call for pumps designed specifically for handling corrosive and abrasive media and their solid contents. The WEDA drainage pumps handle either clean or dirty water, even with small solids with the best performance and efficiency. Applications: general dewatering, ground water, raw water and construction sites Specific gravity up to 1,1 Top discharge design Solid handling 4-12 mm pH values from 5 to 8

VIDEO
