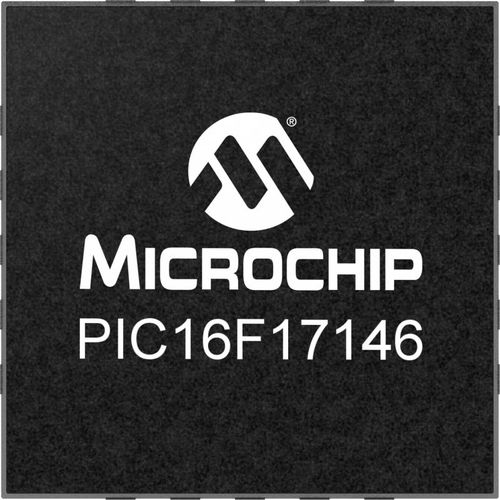

8-bit microcontroller PIC16F171 series

low-poweranalog

The PIC16F17146 family of microcontrollers (MCUs) comes with a full suite of analog-focused peripherals for creating low-cost sensor applications. With an integrated op amp and 12-bit differential Analog-to-Digital Converter with Computation (ADCC), this family brings your analog projects into focus while reducing the number of external components required for your design. These feature-rich devices also include a 16-bit Pulse-Width Modulator (PWM), two 8-bit Digital-to-Analog Converters (DACs) and low-power modes, which make them well suited for low-cost, energy-efficient analog sensor applications with higher resolution requirements. Available in 8- to 40-pin packages and a variety memory options, these small-form-factor MCUs are excellent choices for medical, home automation, industrial process control, automotive and Internet of Things (IoT) applications. If you need the same level of performance for less-demanding analog applications, the PIC16F18176 family of MCUs is an excellent solution. Key Features 12-bit ADCC One General Purpose Op-Amp​ Two Capture/Compare/PWM (CCP)​ Two 16-bit PWM with Dual Outputs​ Two 8-bit DACs (1× Internal, 1× External/Buffered)​ Two analog comparators Four Configurable Logic Cells (CLCs) Flash Cyclic Redundancy Check (CRC) One Numerically Controlled Oscillator (NCO) One Complementary Waveform Generator (CWG) Zero Cross Detect (ZCD) Two EUSARTs with LIN support Two Master Synchronous Serial Port (MSSP) (I2C or SPI) Timer 0/1/2 (one 16-bit, two 16-bit one 8-bit)
