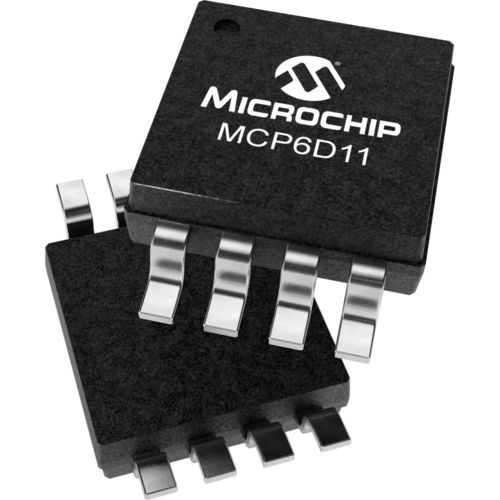

Analog amplifier MCP6D11

high-speedcommon modelow-noise

The MCP6D11 is a low-noise, low-distortion differential amplifier, optimized for driving high-performance, high-speed ADCs such as the MCP331x1D series. In addition to the low-noise and low-distortion, the MCP6D11 consumes only 3.5 mW of quiescent power on a 2.5V supply. For power sensitive applications, a Power-Down pin reduces the power consumption to less than 13 uW. Low Power Iq of only 1.4 mA typical Operating voltage range from 2.5V to 5.5V High Speed Gain-bandwidth product: 90 MHz Slew rate: 25 V/us Fast settling: 200 ns to 0.01% Easy to Use Low offset: 150 uV maximum Rail-to-rail output Input common mode range includes negative rail Power-down function Small Packages: 8-pin MSOP, 16-pin 3x3 QFN Extended temperature: -40 to +125C
