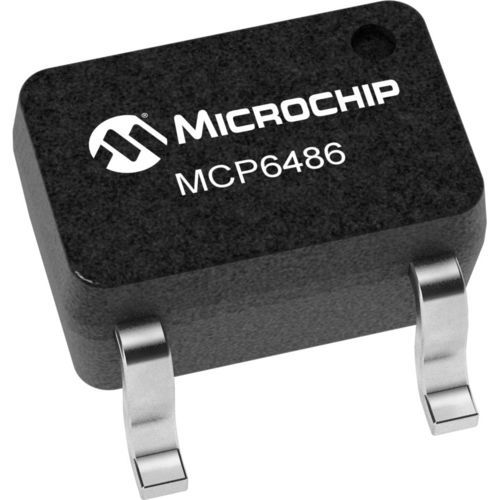

Analog microchip MCP6486

The MCP6486/6R/6U/7/9 series of operational amplifiers have low input bias current and rail-to-rail input and output operation. This family is unity gain stable and has a gain bandwidth product of 10 MHz (typical). These devices operate with a single-supply voltage as low as 1.8V, while only drawing 550 µA/amplifier (typical) of quiescent current. All devices feature integrated EMI filtering and are fully specified over the extended temperature range from -40°C to +125°C. Product Features Input Offset Voltage: 1.6 mV (maximum) Supply Current: 550 µA (typical) Input Bias Current: 1 pA (typical) EMIRR at 1.8 GHz: 61 dB (typical) Phase Margin: 60° (typical) Rail-to-Rail Input/Output Temperature Range: -40°C to +125°C AEC-Q100 Grade 1 Available in SOT23 and SC70 packages Fast start-up time: 2.3 uS (typical)
