Tilt level switch SOLIBA

for solidsfor bulk materialsfor powders

Overview

Operating principle
The SOLIBA is a mechanical tilt level switch designed to detect high level in silos, hoppers and bulk storage containers for grains, powders and granules. Suspended vertically at the target high level, the unit tilts when the product reaches it, changing the internal contact state to stop filling or trigger an alarm. The device only operates when the high level is reached, making it a simple complementary solution to continuous sensors such as rotary paddles, vibrating forks, capacitance probes, radar or ultrasonic sensors.

Construction and materials

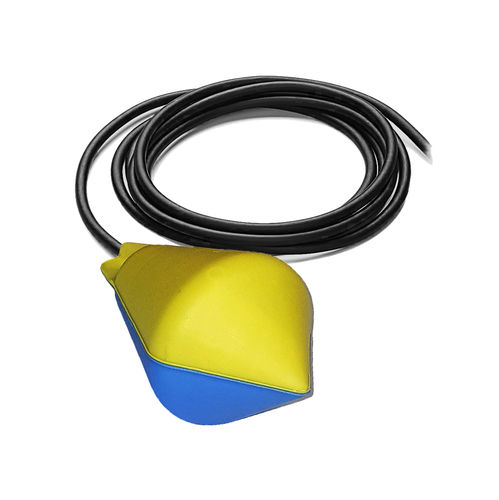

The float body is made of copolymer polypropylene with an optional biconical shape to limit burial in abrasive products and ensure stable, repeatable detection. Materials are chosen for abrasion and impact resistance appropriate for agricultural environments.

Positioning and adjustment
The switching angle depends on mounting position, ballast placement and fixation point. The ballast is adjustable on the cable: moving the ballast changes the switching angle (greater ballast distance yields a larger switching angle and later detection). Install the SOLIBA opposite the product inlet and at a short distance from the silo wall to ensure free tilting.

Mounting and electrical connection
Suspend the unit by the cable sheath and use the recommended FIXCAB fixing accessory for stable positioning. Electrical connections must be sealed and routed to an external junction box (the junction box must not be placed inside the silo). Cable extensions may be made with standard signal cable; units are supplied with the requested cable length to avoid in-tank splices.

Key points

• Mechanical tilt detection for clear high-level alarms or fill-stop.
• Suitable for grains and dusty, abrasive products.
• Biconical shape reduces burial and improves repeatability.
• Simple, fail-safe operation complementary to other level technologies.

Recommended accessories

• FIXCAB: cable fixing accessory for precise positioning.
• Adjustable ballast: stabilizes the unit and tunes switching point.
• Control relay/level controller for integration with automation and alarm outputs.

Technical specifications

• Switching angle: ±10°.
• Application: silo filling stop / high-level detection.
• Electrical supply: 250–400 VAC / VDC, 50/60 Hz.
• Breaking capacity: 20 (8) A (20 A resistive; 8 A inductive).
• Maximum operating temperature: 85 °C.
• Ingress protection: IP68.
• Housing: copolymer polypropylene (biconical version available).
• Cable: 3×1 mm², neoprene (PVC options available).
• Float weight (without cable): 462 g.
• Ballast: 350 g resin-loaded (adjustable on cable).
• Service pressure: up to 3.5 bar.
• Cable lengths available: 3, 5, 6, 10, 13, 15, 20, 25, 30 m.
• Dimensions: height 152 mm – diameter 95 mm (see datasheet for drawings).
