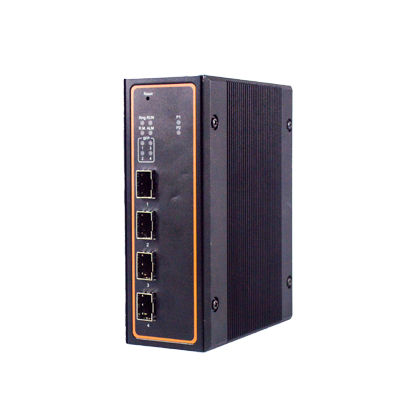

Managed switch EHG7504 Series
4 portsgigabitDIN rail

managed switch
managed switch
managed switch
managed switch
managed switch
managed switch
managed switch
Add to favorites
Compare this product


Characteristics

Type
managed
Number of ports
4 ports
Network
gigabit
Mounting
DIN rail, wall
Other characteristics
PoE, compact, redundant, SFP+, RJ45
Applications
industrial

Description

4 Port Industrial Managed Gigabit PoE Switch, Profinet certified, DIN-Rail Mount • - 4 x 10/100/1000 BASE-T(X) RJ45 ports or 1000 BASE-X SFP slots • - 4 x 802.3af/802.3at Power over Ethernet ports, with maximum 30W PoE power per port and maximum 120 W device power budget. • - Powerful Switching Platform, supporting Redundancy advanced Protocols, such as ERPS, RSTP, STP, MRP (Client) and compatible rings. • - Profinet CC-B v2.33 certified and GSDML file provided • - IEEE 1588v2 Precision Time Protocol Hw-Based Transparent clock • - CE/FCC/UL and NEMA TS-2 Certified for Traffic Control Applications • - EN50155 and EN50121-4 certified for Railway and Trackside applications • - Works from -20°C~70°C • - Security features based on IEC62443-4-2 The EHG7504 Series is an Industrial Grade Managed Gigabit Ethernet PoE Switch. Designed to provide a highly reliable, fault-tolerant, extremely fast network connection in a harsh environment, EHG7504 Series equips two terminal blocks to provide dual redundant power inputs with Reverse Polarity Protection and allows field engineers to build up a stand-alone fault alarm system. EHG75XX family is UL, CE, FCC and NEMA TS-2 certified, allowing the use in Traffic Control Applications. Within its compact DIN-Rail housing design, the EHG7504 series allows you to choose between different port combinations: 10/100/1000 BASE-T(X) RJ45 port, 1000 BASE-X SFP port and IEEE 802.3af/at compliant PoE RJ45. EHG7504 provide, in its 4-PoE-Port Version, up to 120W power budget.
