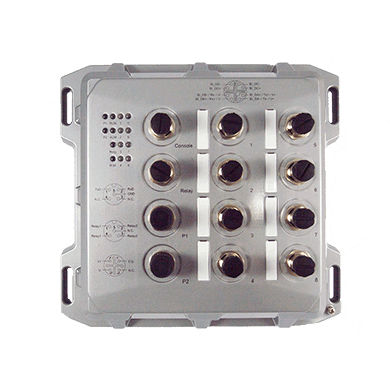

Managed switch EMG8508 Series

8 portsgigabitwall

8-Port EN 50155 Certified Railway IP67 waterproof Managed Gigabit PoE Switch • - 8 x 10/100/1000 BASE-T(X) ports, M12 connector • - Up to 8 x 802.3af or 802.3at compliant PoE ports providing maximum 240W PoE power budget • - EN50155, EN50121-4, IEC60571 and UL 61010-2-201 certified • - Redundant power input, DC or High Voltage DC • - Ruggedized IP67 aluminum enclosure • - Works from -40°C~75°C • - 2x Relay outputs, 5-pin M12 A-Coding • - Profinet Conformance Class B compatible • - Security features based on IEC62443-4-2 ATOP’s EMG8508 IP67-rated Railway-compliant Ethernet switch is the best solution for providing high-speed Gigabit connectivity in track-side or on-board Railway applications. Its rugged, aluminum enclosure can effectively protect the Switch core in any environment. The 8-M12 Connectors Gigabit ports can supply up to 30W of PoE Power (802.3af or 802.3at) to your PoE device providing an overall maximum budget of 240W. This makes EMG8508 the ideal solution for on-board or off-board surveillance by simplifying the wiring where it’s difficult, risky and expensive to introduce new elements. The embedded redundant-power supply input provides a reliable and failure-proof safety mechanism to minimize down-times. EMG8508 comes in either redundant Low-Voltage DC power input (12~57 VDC, 47~57 VDC for PoE models) or in redundant High-Voltage DC power input (50~145 VDC). Each power module, including a Relay-output alarm, uses a S-coding M12 connector that makes EMG8508 ideal and simple for engineers setting up a Fault-Alarm System.
