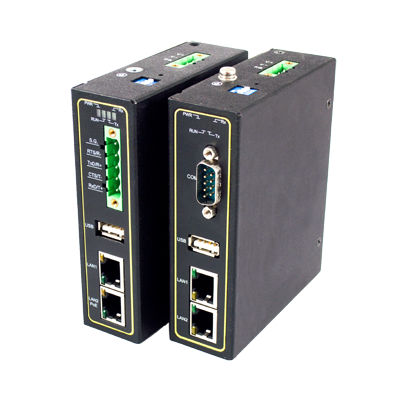

Industrial gateway MB5901 Series

EthernetModbusserial

1-Port Industrial Secure Modbus TCP/RTU/ASCII Gateway, DIN-rail mount, wide-temperature • - Industrial EMC protection, wide temperature operation, -40°C~85°C • - 2-port 10/100Mbps Fast Ethernet, 1-port USB 2.0 high speed OTG • - Bi-Directional Modbus TCP/RTU/ASCII conversion from Serial to Ethernet and Vice-versa • - Advanced features include embedded IPsec VPN security, Virtual ID remapping, VirtualCOM mode, exception handling and many others • - Rugged metal case with wall or DIN-Rail mount • - Configuration via Web Browser / Serial-Telnet Console / Windows Utility • - Remote firmware upgrade • - Optional 802.3af PoE models can be powered through the Ethernet cable Diverse Hardware Infrastructure Modbus Gateway supports the four most commonly used communication standards, RS-232/485/422, and Ethernet. The ease-ofuse configuration utility provided with Modbus Gateway can quickly select the hardware interface , and easily switch to the existing communication infrastructure. Industrial EMC protection and wide temperature operation capability make MB5901 ready for every mission. And if cabling is an issue, the PoE-powered version can allow MB5901 to be powered through PoE. Embedded Security Relax. MB5901 Modbus Gateway supports IPsec VPN encryption, allowing you to safely use the device over the internet without worrying about malicious attacks, data sniffing or unintentional remote control of your Modbus slaves. The embedded VPN deamon supports peer-to-peer and peer-to-side connections.
