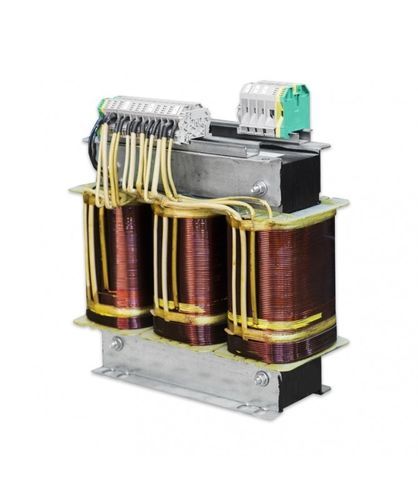

Isolation transformer powerencapsulatedfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- power, isolation
- Configuration
- encapsulated
- Applications
- for industrial applications
- Electrical characteristics
- three-phase
- Norms
- EN61558
- Other characteristics
- protection, primary, secondary, two-winding
- Output power kVA
Max.: 800 kVA
(1,087.696924 hp)Min.: 1 kVA
(1.359621 hp)- Frequency
Max.: 400 Hz
Min.: 50 Hz
Description
Description
Three-phase transformer with separate primary and secondary windings, rated from 1 kVA to 800 kVA. Designed for industrial applications requiring frequency support from 50 Hz up to 400 Hz and available with various enclosure options (without case, IP23, IP55).
Specifications
Optional
Technical data
Three-phase transformer with separate primary and secondary windings, rated from 1 kVA to 800 kVA. Designed for industrial applications requiring frequency support from 50 Hz up to 400 Hz and available with various enclosure options (without case, IP23, IP55).
Specifications
- Power: 1 kVA to 800 kVA
- Frequency: 50 to 400 Hz
- Thermal class: B, F or H depending on power
- Separate primary and secondary windings
- Electrostatic screen to ground between primary and secondary
- Standard operating temperature: 40 °C (or per customer specifications)
- Enclosure options: without case, IP23 or IP55
- Standards: CEI 60726, CEI/EN 61558, NFC 52100, NFC 52200
- Lifting rings sized according to transformer power
Optional
- Electrical protection (fuses, circuit breakers, ...)
- Thermal protection (temperature sensors, ...)
- Tropicalisation
Technical data
- Power range: 1 kVA – 800 kVA
- Frequency range: 50 – 400 Hz
- Thermal class: B, F or H (depending on power)
- Separate primary and secondary windings
- Electrostatic screening to ground between primary and secondary
- Standard operating temperature: 40 °C (or per customer specifications)
- Enclosure options: without case, IP23 or IP55
- Standards: CEI 60726, CEI/EN 61558, NFC 52100, NFC 52200
- Lifting rings sized according to transformer power
- Optional protections: electrical (fuses, circuit breakers), thermal (temperature sensors), tropicalisation
