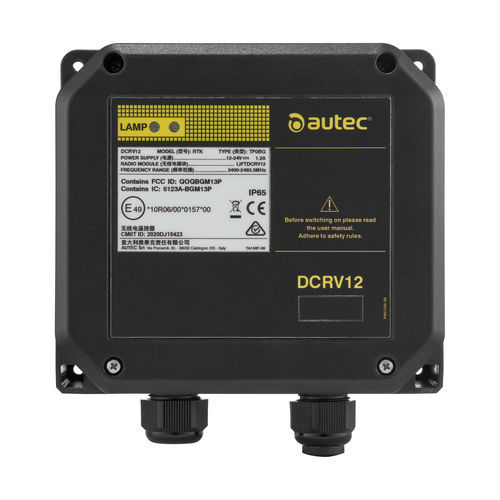

Compact receiver DCRV12

with relay outputIP65

Overview
The DCRV12 is a compact DC base station for lift control applications. It accepts 12–24 VDC supply and provides 12 outputs (4 relays, 8 MOSFET). The unit supports one optional expansion board and offers internal antenna with an external antenna option. Protection degree IP65 ensures suitability for industrial lifting environments.

Key features

• Power supply: 12–24 VDC
• 12 outputs: 4 relays and 8 MOSFET
• Expansion slot for up to 1 optional board
• Antenna: internal; external optional
• Command rated current: 5 A (30 VDC)
• STOP / Safety outputs rated current: 5 A (30 VDC)
• Protection degree: IP65 (Enclosure type 4)
• Dimensions: 150 × 134.5 × 60 mm
• Weight: 1 kg

Technical specifications

• Model: DCRV12
• Application series: Lift
• GSS performance: SIL 2 / PL d; cat. 3
• Max number of optional boards: 1
• Max number of outputs: 12 (4 relays, 8 MOSFET)
• Operating temperature: -20 °C to +70 °C (-4 °F to +158 °F)
• Storage temperature: -40 °C to +70 °C (-40 °F to +158 °F)
• Connecting interfaces: cable gland; 16-pin and 24-pin plugs

Installation & interfaces

• Cable gland and plug connectors for simplified wiring
• Internal antenna fitted; external antenna available for extended range
• IP65 enclosure suitable for dust and water exposure in lifting environments
• Compact footprint facilitates mounting in control cabinets or on mobile equipment

Options & ordering

• Reference: DCRV12 (Lift series)
• Optional expansion board: adds outputs or custom functions (max 1)
• External antenna available as accessory
• Contact supplier for configuration, mounting accessories and certification documents
