Radio control T12B/T12C

with buttonswith configurable buttonsfor vehicles

Overview

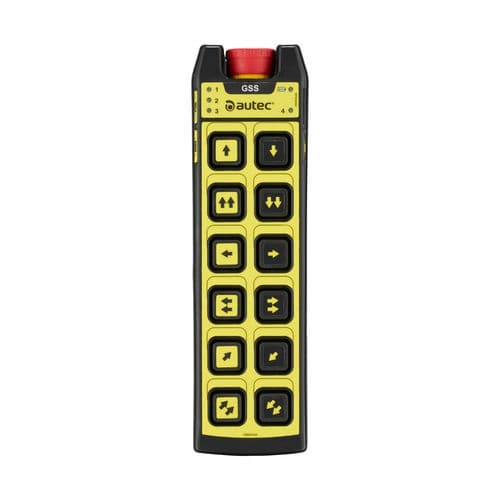

The LIFT T12 pushbutton is a lightweight, rugged handheld radio transmitter with 12 dual-step pushbuttons and 3 programmable side buttons to expand available functions while reducing accidental activations. Four data-feedback LEDs provide machine status information. The unit is intended for control of cranes and mobile vehicles and can be configured via the MY LIFT AUTEC smartphone app.

Key features

• 12 dual-step pushbuttons for precise, proportional-like control
• 3 additional programmable side buttons to increase command capacity
• 4 LEDs for data feedback and machine status indicators
• Configurable via the MY LIFT AUTEC mobile app for rapid setup and diagnostics
• T-Key authorization for handheld use or programmable PIN as alternative
• Customizable labeling options: full panel or individual pushbutton symbol kit

Main applications

• Overhead cranes
• Gantry, luffing and flag cranes
• Special transport and roll-off trucks

Options / Certifications

• MY LIFT AUTEC app for configuration
• UL 508 certification available when used with ACRH11 base station

Technical specifications

• Power supply: Li-Ion battery LPM00 (T12B); 3 alkaline AAA 1.5 V (T12C)
• Frequency band: 2400 – 2483.5 MHz (40 channels)
• GSS/EMS/ATS performance (EN ISO 13849-1 and EN IEC 62745:2017): up to PL d, SIL 2
• Typical working range: 75 m (246 ft)
• Average usage time with fully charged battery (continuous use at 20°C / 68°F): 38 h (T12B); 70 h with batteries 1.2 Ah (T12C); 88 h with batteries 1.5 Ah (T12C)
• Antenna: internal
• Protection degree: IP65 (Enclosure type 4)
• Operating temperature: -20 °C ÷ +60 °C (-4 °F ÷ +140 °F)
• Storage temperature: -40 °C ÷ +70 °C (-40 °F ÷ +158 °F)
• Dimensions: 66.6 x 230.8 x 37.4 mm (2.62 x 9.08 x 1.47 in)
• Weight: ~0.35 kg (~0.77 lb)
