Radio control T8B/T8Cwith buttonsfor vehiclesfor machine tools
Add to favorites
Compare this product
Characteristics
- Type
- radio
- Control interface
- with buttons
- Product applications
- for overhead cranes, winch, for hoists, for vehicles, for conveyor belts, for hoists, trailer, for caged ladders, for conveyor belts, for AGVs, for magnets, for machine tools
- Number of buttons
- 8-button
- Features
- with emergency stop
- Protection level
- IP65
- Battery type
- Li-ion
- Other characteristics
- safety, compact, with feedback
- Reach
75 m
(246'00" )- Length
179 mm
(7.05 in)- Width
64.5 mm
(2.54 in)- Weight
0.25 kg
(0.551 lb)- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Frequency
Max.: 2,483.5 MHz
Min.: 2,400 MHz
- Power source
1.2 A, 1.5 A
- Continuous working time
45 h, 90 h, 110 h
Description
Product overview

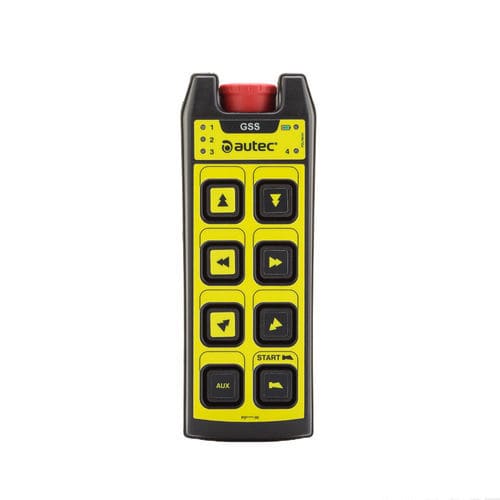

Lightweight, compact handheld radio control units for industrial lifting applications. Models T8B and T8C provide 8 dual‑depression command buttons; the lower right button is dedicated to START and can be configured to sound the machine horn. Four status LEDs indicate the selected hoist(s) in dual‑hoist setups or other machine states. Power is via two swappable Li‑Ion batteries (T8B, delivered with charger) or three internal AAA batteries (T8C).
Main strengths
Accessories
Options
Technical data (table)
Performance Emergency Stop (EMS): SIL 2 / PL d; cat. 3
Performance General Safe Stop (GSS): SIL 2 / PL d; cat. 3
Performance Automatic Stop (ATS): SIL 2 / PL d; cat. 3
Power supply: Li‑Ion battery LPM00 (T8B) / 3 × AAA 1.5 V (T8C)
Frequency band: 2400–2483.5 MHz (40 channels)
Typical working range: 75 m (246 ft)
Battery life (continuous use at 20°C / 68°F): 45 h (T8B); 90 h (with 1.2 Ah AAA batteries, T8C); 110 h (with 1.5 Ah AAA batteries, T8C)
Antenna: internal
Protection degree: IP65 (Enclosure type 4)
Operating temperature: -20 °C to +60 °C / Storage: -40 °C to +70 °C
Dimensions: 64.5 × 179 × 37.5 mm (2.54 × 7.05 × 1.48 in)
Weight: 0.25 kg (0.55 lb)
Technical specifications
Lightweight, compact handheld radio control units for industrial lifting applications. Models T8B and T8C provide 8 dual‑depression command buttons; the lower right button is dedicated to START and can be configured to sound the machine horn. Four status LEDs indicate the selected hoist(s) in dual‑hoist setups or other machine states. Power is via two swappable Li‑Ion batteries (T8B, delivered with charger) or three internal AAA batteries (T8C).
Main strengths
- Radio link in the 2.4 GHz band using Bluetooth® technology with additional AUTEC custom security layer.
- "MY LIFT AUTEC" smartphone app (iOS and Android) for simplified system configuration and parameter tuning.
- Compact base station with semi‑transparent cover, integrated high‑intensity flash lamp, optional integrated horn signal and selectable cable gland or multi‑plug connections.
Accessories
- T‑Key for authorizing handheld units (alternative to PIN authentication).
Options
- App: "MY LIFT AUTEC" for quick configuration of installation parameters.
- UL 508 certification (permits use in the USA and Canada when paired with the ACRH11 base station).
Technical data (table)
Performance Emergency Stop (EMS): SIL 2 / PL d; cat. 3
Performance General Safe Stop (GSS): SIL 2 / PL d; cat. 3
Performance Automatic Stop (ATS): SIL 2 / PL d; cat. 3
Power supply: Li‑Ion battery LPM00 (T8B) / 3 × AAA 1.5 V (T8C)
Frequency band: 2400–2483.5 MHz (40 channels)
Typical working range: 75 m (246 ft)
Battery life (continuous use at 20°C / 68°F): 45 h (T8B); 90 h (with 1.2 Ah AAA batteries, T8C); 110 h (with 1.5 Ah AAA batteries, T8C)
Antenna: internal
Protection degree: IP65 (Enclosure type 4)
Operating temperature: -20 °C to +60 °C / Storage: -40 °C to +70 °C
Dimensions: 64.5 × 179 × 37.5 mm (2.54 × 7.05 × 1.48 in)
Weight: 0.25 kg (0.55 lb)
Technical specifications
- Functions safety performance: EMS / GSS / ATS = SIL 2 / PL d; cat. 3
- Power supply: Li‑Ion battery LPM00 (T8B) or 3 × AAA 1.5 V (T8C)
- Frequency band: 2400–2483.5 MHz (40 channels)
- Typical working range: 75 m (246 ft)
- Battery life (continuous use at 20°C / 68°F): 45 h (T8B); 90 h (1.2 Ah AAA, T8C); 110 h (1.5 Ah AAA, T8C)
- Antenna: internal
- Protection degree: IP65 (Enclosure type 4)
- Operating temp.: -20 °C to +60 °C; Storage temp.: -40 °C to +70 °C
- Dimensions: 64.5 × 179 × 37.5 mm
- Weight: 0.25 kg
