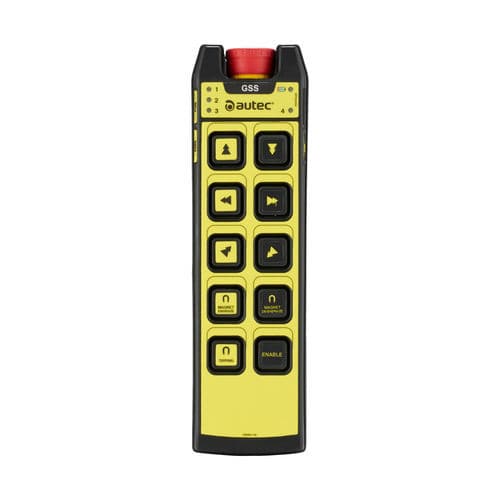

Radio control T10B/T10C

with buttonswith configurable buttonsfor vehicles

Overview
The LIFT T10 pushbutton is a lightweight, sturdy handheld transmitter with 10 dual-step buttons and 3 additional programmable side buttons for extended control. It provides straightforward programming, 4 status LEDs for operational feedback and an internal antenna. The unit operates on a 2.4 GHz radio platform and is designed for cranes and mobile industrial vehicles requiring safety-rated remote control.

Key features

• 10 dual-step pushbuttons for discrete command levels
• 3 additional programmable side buttons
• 4 LEDs for status and data feedback
• 2.4 GHz radio operation with 40 channels (2400–2483.5 MHz)
• T-Key authorization or programmable PIN for handheld use
• Customizable labeling: full panel or pushbutton symbol kit
• Compatible with the "MY LIFT AUTEC" smartphone app for quick configuration
• Internal antenna
• Ingress protection IP65 (Enclosure type 4)

Options

• MY LIFT AUTEC app for fast configuration of installation parameters
• UL 508 certification available when used with ACRH11 base station (USA/Canada)

Intended applications

• Overhead cranes, gantry, luffing and jib cranes
• Exceptional transport and roll-off trucks
• Machine tools and processing equipment
• Tow vehicles and trailers
• AGV and other industrial mobile platforms

Technical data sheet (summary)
Power supply: Li‑Ion battery LPM00 (T10B) or 3 × AAA 1.5 V alkaline (T10C)
Frequency band: 2400–2483.5 MHz (40 channels)
Safety performance (EN ISO 13849-1 and EN IEC 62745:2017): up to PL d, SIL 2
Typical working range: 75 m (246 ft)
Average usage time (continuous at 20 °C): 38 h (T10B); 70 h with 1.2 Ah cells (T10C); 88 h with 1.5 Ah cells (T10C)
Antenna: internal
Ingress protection: IP65 (Enclosure type 4)
Operating temperature: -20 °C ÷ +60 °C (-4 °F ÷ +140 °F)
Storage temperature: -40 °C ÷ +70 °C (-40 °F ÷ +158 °F)
Dimensions: 66.6 × 230.8 × 37.4 mm (2.62 × 9.08 × 1.47 in)
Weight: ~0.35 kg (~0.77 lb)

Technical specifications

• Power supply: Li‑Ion battery LPM00 (T10B) or 3 × AAA 1.5 V alkaline (T10C)
• Frequency band: 2400–2483.5 MHz (40 channels)
• Safety performance: up to PL d, SIL 2 (EN ISO 13849-1; EN IEC 62745:2017)
• Typical working range: 75 m (246 ft)
• Battery life (continuous at 20 °C): 38 h (T10B); 70 h with 1.2 Ah (T10C); 88 h with 1.5 Ah (T10C)
• Antenna: internal
• Ingress protection: IP65
• Operating temperature: -20 °C ÷ +60 °C
• Storage temperature: -40 °C ÷ +70 °C
• Dimensions: 66.6 × 230.8 × 37.4 mm
• Weight: ~0.35 kg
