Radio control T6B/T6C

with buttonsfor conveyorfor machine tools

Product overview

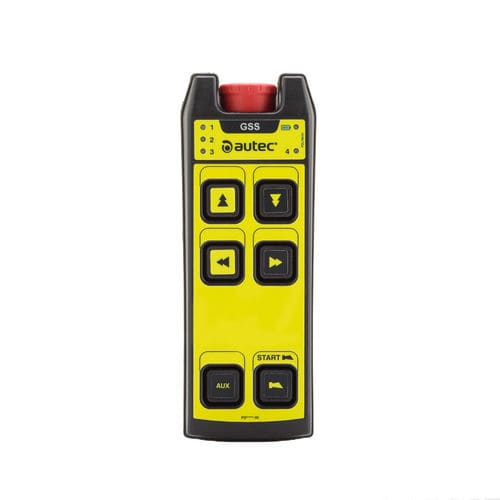

Lightweight, robust radio handheld remote controls designed for crane and hoist operations. Models T6B and T6C feature 6 dual-depression buttons; the lowest right-hand button is dedicated to START and can optionally trigger the machine horn. Four status LEDs indicate selected hoists or other machine information. Power is supplied by either a swappable Li‑ion battery (T6B, "B" version, with charger) or three internal AAA batteries (T6C, "C" version).

Main strengths

• Radio communication in the 2.4 GHz band using the latest Bluetooth® technology with additional AUTEC custom security protection
• "MY LIFT AUTEC" smartphone app (iOS and Android) for simplified system configuration
• Compact, optimized base station with semi-transparent cover, integrated high‑intensity flash lamp, optional integrated horn signal and choice of cable gland or multiple plug connections

Accessories

• T-Key to authorize handheld use and exclude PIN entry

Options

• App "MY LIFT AUTEC": quick configuration of LIFT series remote control parameters via smartphone
• UL 508 certification: enables use in the United States and Canada (granted only when used with the ACRH11 base station)

Base station (examples)

• ACRH11
• DCRV12

Applications

• Overhead cranes
• Magnets and underhook attachments
• Conveyor belts
• Machine tools
• Hoists and winches
• Jib cranes
• Trailers
• Tow vehicles
• Automated guided vehicles (AGV)
• Ladders

Technical specifications

• Emergency Stop (EMS) performance: SIL 2 / PL d; cat. 3
• General Safe Stop (GSS) performance: SIL 2 / PL d; cat. 3
• Automatic Stop (ATS) performance: SIL 2 / PL d; cat. 3
• Power supply: Li‑Ion battery LPM00 (T6B); 3 × alkaline AAA 1.5 V (T6C)
• Frequency band: 2400 – 2483.5 MHz (40 channels)
• Typical working range: 75 m (246 ft)
• Average usage time with fully charged battery (continuous use at 20°C / 68°F): 45 h (T4B); 90 h with 1.2 Ah batteries (T6C); 110 h with 1.5 Ah batteries (T6C)
• Antenna: internal
• Protection degree: IP65 (Enclosure type 4)
• Operating temperature: -20 °C to +60 °C (-4 °F to +140 °F); Storage temperature: -40 °C to +70 °C (-40 °F to +158 °F)
• Dimensions: 64.5 × 179 × 37.5 mm (2.54 × 7.05 × 1.48 in)
• Weight: 0.25 kg (0.55 lb)
