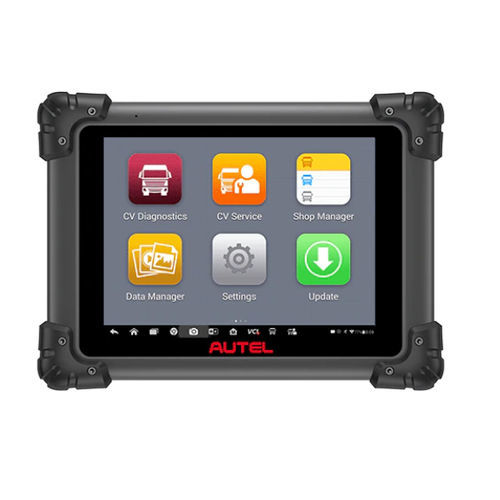

WiFi diagnostic tool MaxiSys MS908CV

OBD2SD cardHDMI

Overview
The MaxiSYS MS908CV is a heavy‑duty OBD2 diagnostic scanner built on the MaxiSys 908 platform. It delivers comprehensive diagnostic functions for commercial vehicles and machines manufactured in North America, Europe and Asia. Designed for independent workshops, owner‑operators and fleet maintenance teams requiring a single professional scan tool.

Key applications

• Diagnostics and troubleshooting on trucks, buses and commercial machinery
• Fleet maintenance, depot inspections and mobile repair operations

Hardware

• Samsung Exynos Cortex‑A9 quad‑core 1.4 GHz processor
• 9.7" 1024×768 IPS capacitive multi‑touch display
• 2GB RAM and 32GB onboard SSD
• 5 MP rear camera with autofocus and flashlight
• Dual‑band Wi‑Fi (2.4/5 GHz), Ethernet (RJ45) and Bluetooth connectivity
• Rechargeable 11,000 mAh battery — up to 8 hours continuous operation
• Rugged plastic housing with protective rubber boot; dimensions 300×220×50 mm; net weight 1.42 kg
• VCI connects wirelessly to the main unit with up to 230 m working range; USB, audio and auxiliary ports

Software

• Android operating system for fast boot and multitasking
• Intuitive navigation with code reading, live data, active tests and adaptations
• Displays live data as text, graph and gauges; configurable triggers and one‑touch record/playback
• Cloud‑based Data Manager for customer and vehicle records, scanner data and technician notes
• Remote technical support capability, Wi‑Fi printing and automatic Wi‑Fi software updates

Technical specifications
OS: Android 4.0
Processor: Samsung Exynos quad‑core 1.4 GHz
Memory: 2GB RAM / 32GB SSD
Display: 9.7" LED capacitive touchscreen, 1024×768 (IPS)
Connectivity: Ethernet (RJ45); Wi‑Fi 802.11 a/b/g/n (2.4/5 GHz); USB 2.0; Bluetooth v2.1+EDR; SD up to 32GB; HDMI
Camera: Rear 5.0 MP AF with flashlight
Battery: 11,000 mAh (3.7 V) lithium‑polymer; charge via 12 V AC/DC; input voltage 9–24 V
Operating temp: -10 to 55 °C; Storage temp: -20 to 70 °C
Dimensions: 300 × 220 × 50 mm; Net weight: 1.42 kg

Protocols and compatibility

• SAE J1939; SAE J1708; manufacturer‑customized J1939/J1708
• KWP, VPW, UDS‑CAN, CDL; broad coverage of US, Asian and European commercial vehicle makes

Package contents

• MaxiSYS MS908CV main unit
• VCI module and cable set
• AC/DC charger, USB cable, protective boot and quick reference guide
