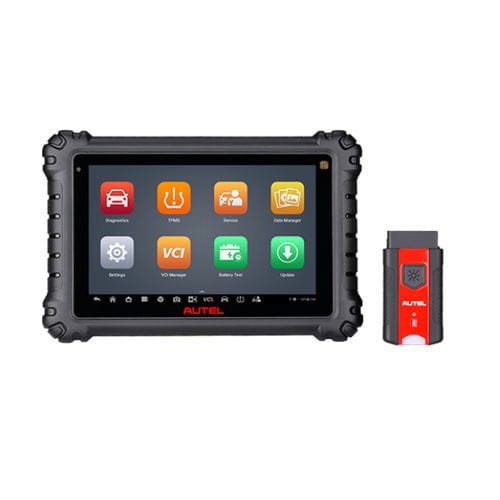

WiFi diagnostic tool MaxiCOM MK906 series

OBD2Bluetoothfault code reading

Overview
The MaxiCOM MK906 Pro-TS / MK906S PRO-TS is an advanced automotive diagnostic tablet designed for professional workshops and fleet technicians. Based on a multitasking mobile OS and an octa-core processor, it combines OE-level diagnostics coverage with wireless communication and an integrated TPMS antenna module to support comprehensive vehicle service operations.

Hardware

• 8-inch 1920 x 1200 high-resolution TFT-LED capacitive touchscreen
• Qualcomm 660 octa-core processor (2.2GHz + 1.8GHz)
• Memory / Storage: 4 GB RAM / 128 GB storage
• Android 10 operating system
• 11,600 mAh rechargeable battery for extended field use
• 16 MP front and 16 MP rear cameras
• MaxiVCI V200 Bluetooth vehicle communication interface supporting current protocols

Software / Diagnostic Capabilities

• OE-level diagnostics coverage for 1996 and newer U.S., Asian and European vehicles
• AutoScan to scan all available vehicle systems
• Read and erase fault codes; view freeze frame and live data
• Active Tests (bi-directional controls), Coding and Adaptations
• AutoVIN / VIN scan for rapid vehicle identification
• Integrated TPMS antenna module enabling TPMS activation, relearn and programming functions
• Cloud-based report generation and data management for workshop record-keeping

New Software Features

• Battery analysis capability (requires separate MaxiBAS BT506)
• Cloud report storage and remote data management

Specifications

• CPU: Qualcomm 660 Octa-core (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
• RAM / Storage: 4 GB / 128 GB
• OS: Android 10
• Display: 8-inch 1920 x 1200
• Battery: 11,600 mAh
• Cameras: Front 16 MP / Rear 16 MP
• Wireless VCI: MaxiVCI V200 (Bluetooth)
• Diagnostic coverage: 1996+ US, Asian, European vehicles
• Special functions: 36 reported
• Guide function: Supported
• Battery & electrical system testing: Supported (with compatible tester)
• TPMS: Integrated antenna module reported; some documentation tables may list TPMS differently
• Cloud: Cloud reports and storage supported

Compatibility and recommended use

• Intended for professional automotive workshops, service centers and fleet maintenance
• Suitable for passenger cars and light commercial vehicles from major markets
• Use with recommended MaxiVCI and optional MaxiBAS BT506 for extended battery testing

Package contents (typical)

• MaxiCOM MK906 Pro-TS / MK906S PRO-TS tablet
• MaxiVCI V200 Bluetooth interface
• Charging adapter and cables
• User quick guide and basic accessories for diagnostics
