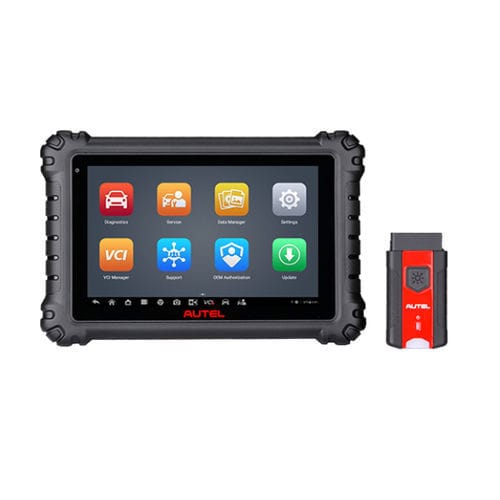

USB diagnostic tool MaxiCOM MK906 series

HDMIBluetoothWiFi

Overview
The MaxiCOM MK906 Pro / MK906S PRO is a professional automotive diagnostic tablet designed for comprehensive OE-level diagnostics and vehicle analysis. It integrates an octa-core processor, an 8.0-inch high-resolution capacitive touchscreen and long-range wireless communication to support efficient multitasking and rapid vehicle identification.

Hardware

• 8.0-inch 1920 x 1200 TFT-LCD capacitive touchscreen; Qualcomm 660 octa-core processor; 4GB RAM and 128GB onboard storage; Android 10.0.
• 11,600 mAh rechargeable battery; 16 MP front and 16 MP rear cameras with autofocus and flash.
• MaxiVCI V200 wireless Bluetooth vehicle interface supporting latest protocols and long-distance communication.
• Connectivity: WiFi 802.11a/b/g/n/ac 2x2 MIMO; Bluetooth; GPS; two USB-A host, one USB mini device; HDMI 2.0; SD card support up to 256GB.

Software

• Comprehensive diagnostics for 1996 and newer US, Asian and European vehicles.
• AutoScan to scan all available systems; AutoVIN/Scan VIN for fast vehicle identification.
• Read and erase codes, view freeze frame and live data streams.
• Bi-directional active tests, coding and adaptations.

New Software Features

• Battery analysis capability (requires optional MaxiBAS BT506 battery and electrical system tester).
• Cloud-based report generation and centralized data management.

Technical specifications

• Operating System: Android 10.0
• Processor: Qualcomm 660 Octa-core (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
• Memory: 4GB RAM & 128GB onboard memory
• Display: 8.0-inch TFT-LCD, 1920 x 1200, capacitive touch
• Connectivity: WiFi 802.11a/b/g/n/ac 2x2 MIMO; BT v2.1+EDR; GPS; USB; HDMI; SD up to 256GB
• Camera: Rear 16 MP with autofocus and flash; Front 16 MP
• Sensors: Gravity accelerometer, ambient light sensor
• Audio: Microphone, dual speakers, 3.5 mm headset jack
• Battery: 11,600 mAh lithium-polymer (3.8V); charging via 12V adapter
• Input Voltage: 12V/3A adapter
• Operating Temperature: 0 to 50°C
• Storage Temperature: -20 to 60°C
• Dimensions (WxHxD): 366.5 x 280.9 x 34 mm
• Weight: 2.18 kg
• Supported protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411, ISO-11898-2/3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610, UART Echo Byte, SAE-J2809, SAE-J2740, SAE-J1567, Ford UBP, Nissan DDL UART, BMW DS2/DS1, KW81/KW82, SAE J1708, SAE-J1850 PWM/VPW, SAE-J1850 VPW
