Bluetooth diagnostic tool MaxiSys MS919S2

WiFifault code readingactuator test

Product overview

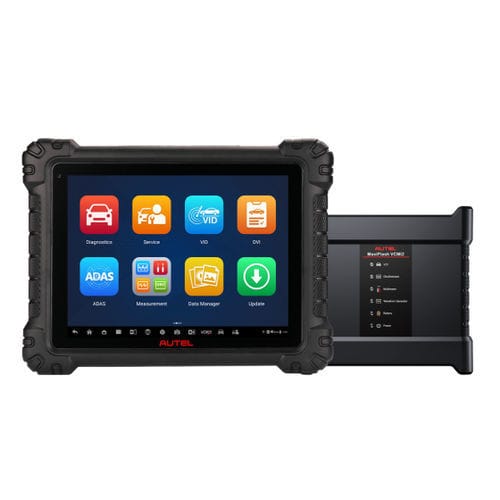

The MaxiSys MS919S2 is an 11-inch touchscreen Android 13 diagnostic tablet designed for professional automotive workshops and technicians. It integrates a 6-in-1 MaxiFlash VCMI2 (vehicle communication and measurement interface) to provide near-OEM level diagnostic and service functions including live data analysis, active testing and system inspection.

Key features

• Data-driven diagnostics with enhanced PID analysis and multi-PID graphing to correlate parameters and detect anomalies.
• Record and compare live values across multiple systems for trend analysis.
• Enhanced split-screen diagnostics and diagnostics+X for simultaneous use of multiple applications.
• Integrated 6-in-1 MaxiFlash VCMI2 with 4-channel oscilloscope and multimeter support for signal capture and measurement.
• Hands-free virtual assistant MAX for voice-guided navigation, initiating scans and executing tests.
• Network Topology 3.0 with color-coded module status and dynamic network analysis.
• Advanced digital vehicle inspection (multi-point DVI) and active scope directly from live data analysis.

Specifications

• Model: MS919S2 (MaxiSys)
• Display: 11-inch touchscreen, 2176 x 1600
• System: Android 13
• Memory/Storage: 12GB RAM + 256GB storage
• Battery: 15000 mAh
• Cameras: Rear 16MP, Front 16MP
• Connectivity: Dual WiFi 6E, Bluetooth
• Charging: DC fast charging
• Integrated VCI: 6-in-1 MaxiFlash VCMI2
• VCMI2 features: 4-channel oscilloscope, multimeter support
• Protocols: DoIP, CAN FD, J2534, D-PDU
• Advanced functions: Data-driven PID analysis, multi-PID graphing, split-screen diagnostics, Network Topology 3.0, MAX voice assistant, multi-point DVI

Applications

• Comprehensive vehicle diagnostics, troubleshooting and repairs in professional workshops.
• Emission testing, performance analysis and engine fault diagnosis using multi-PID and oscilloscope data.
• Electric/electronic network analysis and module identification with Network Topology 3.0.
• Routine maintenance, service procedures and digital vehicle inspection (DVI).
