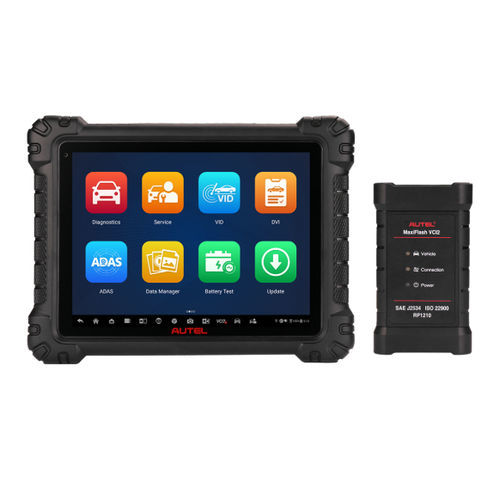

Bluetooth diagnostic tool MaxiSys MS909S2

WiFireal time monitoringengine

Overview
The MaxiSys MS909S2 is an 11-inch touchscreen Android diagnostic tablet designed for professional automotive diagnostics and service. It combines upgraded hardware, long battery life and vehicle-interface capabilities to provide near OEM-level diagnostics, live-data analysis and guided service workflows for workshops and mobile technicians.

Key features

• Data-Driven Diagnostics with enhanced PID analysis for faster fault isolation.
• Enhanced graphing to visualize multiple parameters and identify inter-PID relationships.
• Record and compare parameter value changes across multiple systems and sessions.
• Multi-PID selection for simultaneous analysis of related signals (engine, performance, emissions).
• Vehicle system process diagrams with live data at critical process points.
• Enhanced split-screen diagnostics and diagnostics+X for concurrent applications.
• Hands-free virtual assistant MAX for voice commands, system scans and maintenance tasks.
• Network Topology 3.0 with dynamic analysis and color-coded module status for quick fault localization.
• Integrated oscilloscope functionality accessible directly from live-data analysis.
• Advanced digital vehicle inspection (DVI) through multi-point inspection workflows.

Technical specifications

• Storage: 12GB RAM + 256GB internal storage
• Screen: 11" touchscreen; resolution 2176 x 1600
• Android System: Android 13
• Battery: 15000 mAh
• Camera: Rear 16 MP, Front 16 MP
• WiFi: Dual WiFi 6E
• DC Fast Charging: DC fast charge support
• Bluetooth: Supported
• VCI: VCI 2
• Charging Dock: Not applicable
• VCI2 - Oscilloscope: Not applicable
• VCI2 - Multimeter: Not applicable
• Protocol support: DoIP (supported)
• CAN FD: Supported
• J2534: Supported
• D-PDU: Supported
