Pit jack

hydro-pneumatic20 tonsfor lifting applications

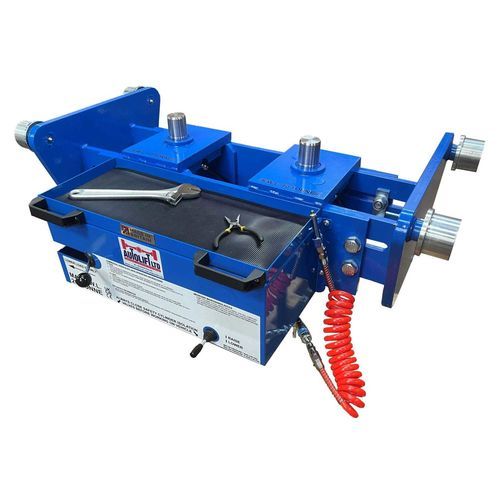

A heavy-duty, adjustable twin‑ram pit jack designed for commercial vehicle inspection pits and test lanes. It provides safe, accurate lifting and positioning of HGV and PSV vehicles with ergonomic handling and multiple safety systems.

Key features

• Available in three frame sizes with a large range of adjustment for versatility.
• Fast-acting air pump for rapid operation.
• Air-over-oil hydraulic design for improved performance and extended cylinder life.
• Ergonomic handles for easy movement along the pit.
• Tool tray for accessible storage of tools and parts while working.
• Cylinders can be operated independently and feature transversely sliding rams for accurate positioning.
• Suitable for ATF and MOT test lanes and used by DVSA for HGV inspection references.
• Triple layer of safety features: safety lowering valves, anti-burst valves and ram lock-off handles. Security struts are available as an optional retrofit to provide an additional layer of security.
• UKCA / CE marked and conforms to EC regulations.

Range of adjustment (frame sizes)

• Small — Pit Min: 750 mm — Pit Max: 1030 mm
• Medium — Pit Min: 860 mm — Pit Max: 1160 mm
• Large — Pit Min: 1110 mm — Pit Max: 1410 mm

Specification details

• Beam: Covering pit widths from 750 mm - 1400 mm. See size range above for the most suitable frame size.
• Wheels: Beam moves on four wheels fitted with needle roller bearings for ease of movement up and down the pit. Parallel wheels are fitted as standard to suit flat angle pit edges; tapered wheels are available for use on RSJ supporting rails. Spring-loaded wheels can be provided as an option; these retract under load to lock position.
• Power Pack: High output hand pump delivering the required flow to the cylinders.
• Rams: Two double-acting hydraulic cylinders with a 400 mm stroke. Top-quality chrome-plated rods and modern seal technology ensure long, trouble-free life. Each cylinder is fitted with a safety hose burst valve and a 90-degree movement isolation valve for easy visual confirmation of position.
• Warranty & Compliance: 5 year warranty (terms apply). Designed and manufactured in accordance with Machinery Directive 98/37/EC and engineering standard BS EN 1494:2001; complies with EC requirements and LOLER lifting regulations. Each unit is fully tested, marked with a serial number and supplied with a test certificate.

Technical specifications

• Capacity: 20 Tonne.
• Included with the unit (delivered as standard): 2 × 125 mm extensions, 2 × vee head adapters, 2 × dish head pansies, rear adapter rack holder and air blow gun.
