Pit jack

hydro-pneumatic40 tonfor lifting applications

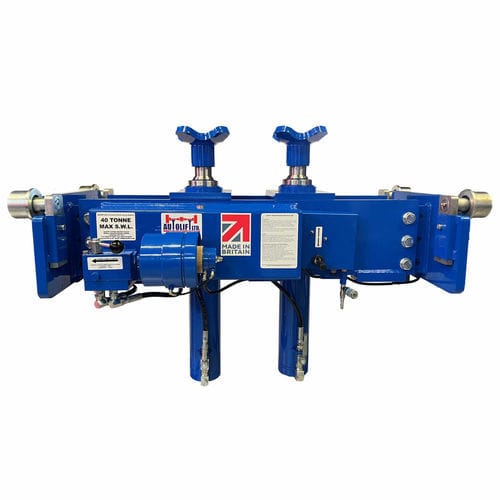

The 40 Tonne Air-Operated Twin-Ram Commercial Pit Jack is a heavy-duty pit jack designed for commercial vehicle inspection and lifting operations, offering multiple built-in safety features and adaptable pit-width configurations.

Key features

• 400 mm lifting stroke
• Fast-acting air pump for rapid operation
• Manufactured to suit individual pit widths and specifications
• Air-over-oil hydraulic design for improved performance and longer cylinder life
• Cylinders operable independently with transversely sliding rams for accurate positioning
• Triple layer safety features: safety lowering valves, anti-burst valves, and ram lock-off handles (security struts available as an optional extra)
• Includes 2x Dish Head Pansies and an airline adapter as standard
• Covered by a 5 year warranty (T&Cs apply)

Technical specifications

• Capacity: 40 Tonne lift (double rams) – 20 Tonne per ram
• Beam: covering pit widths from 950 mm to 1200 mm (contact manufacturer if pit is larger than 1200 mm)
• Wheels: beam moves on four wheels with needle roller bearings for easy movement; spring-loaded wheels retract under load to lock position
• Power pack: high output hand pump providing required flow to the cylinders
• Rams: two double-acting hydraulic cylinders with 400 mm stroke; chrome-plated rods and advanced seal technology; each cylinder fitted with safety hose burst valve and a 90° movement isolation valve for visual confirmation of position
• Warranty & compliance: 5 year warranty (T&Cs apply). Designed and manufactured in accordance with Machinery Directive 98/37/EC and BS EN 1494:2001; units fully tested, serial numbered and supplied with a test certificate
