Pit jack

hydro-pneumatic20 tonsfor lifting applications

Overview

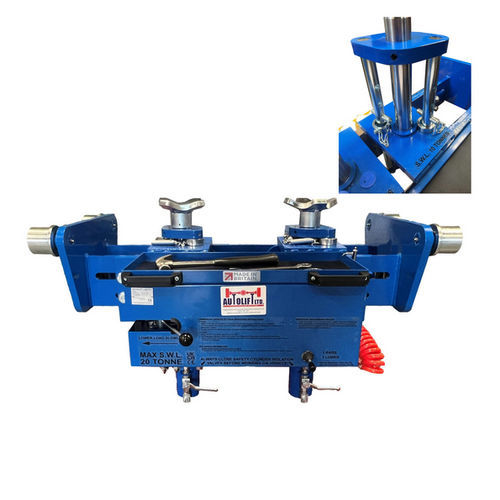

This UK-manufactured adjustable commercial twin-ram pit jack is designed for inspection pits and ATF & MOT test lanes. It features Security Struts for enhanced safety, an air-over-oil hydraulic system with a fast-acting air pump, independent cylinder operation and transversely sliding rams for precise positioning.

Key features

• 20 tonne capacity
• 400 mm lifting stroke
• Three frame sizes with broad adjustment ranges for versatile pit fitment
• Fast-acting air pump
• Air-over-oil hydraulic design for improved performance and extended cylinder life
• Ergonomic handles for easy movement along the pit
• Tool tray for convenient access to tools and components
• Independent cylinder operation and transversely sliding rams for accurate positioning
• Multiple safety layers: safety lowering valves, anti-burst valves, ram lock-off handles and Security Struts
• Standard inclusions: 2 x 125 mm extensions, 2 x vee head adapters, 2 x dish head pans, rear adapter rack holder and air blow gun (included)
• UKCA / CE marked; conforms to EC regulations
• 5 year warranty

Range of adjustment (frame sizes)

• Small — Pit Min: 750 mm; Pit Max: 1030 mm
• Medium — Pit Min: 860 mm; Pit Max: 1160 mm
• Large — Pit Min: 1110 mm; Pit Max: 1410 mm

Additional product details

• Beam: Covers pit widths from 750 mm to 1400 mm (select most suitable frame size)
• Wheels: Beam rides on four wheels with needle roller bearings for ease of movement; parallel wheels standard for flat-angle pit edges; tapered wheels available for RSJ supporting rails; spring-loaded wheels available on request (retract under load to lock position)
• Power pack: High-output hand pump with delivery valve, preset overpressure valve and 'dead man' release valve for high flow to the cylinders
• Rams: Two double-acting hydraulic cylinders with 400 mm stroke, chrome-plated rods, advanced seals, safety hose burst valves and 90° isolation valve for visual confirmation of position
• Warranty & Compliance: 5 year warranty (T&Cs apply). Designed and manufactured in accordance with Machinery Directive 98/37/EC and BS EN 1494:2001; complies with EC requirements and LOLER; each unit fully tested, serial numbered and supplied with a test certificate

Technical specifications

• Capacity: 20 tonne
• Lifting stroke: 400 mm
• Frame size options and pit adjustment ranges: Small (750–1030 mm), Medium (860–1160 mm), Large (1110–1410 mm)
• Standard inclusions: 2 x 125 mm extensions; 2 x vee head adapters; 2 x dish head pans; rear adapter rack holder; air blow gun
• Hydraulic design: Air-over-oil with fast-acting air pump
• Safety features: safety lowering valves, anti-burst valves, ram lock-off handles, Security Struts
• Beam coverage: suits pit widths 750–1400 mm
• Wheels: needle roller bearing wheels; parallel standard, tapered or spring-loaded optional
• Power pack: high-output hand pump with delivery valve, preset overpressure valve and 'dead man' release
• Rams details: double-acting cylinders, chrome plated rods, safety hose burst valves, 90° isolation valve
• Compliance: UKCA / CE marked; conforms to EC regulations, Machinery Directive 98/37/EC, BS EN 1494:2001; LOLER compliant
• Warranty: 5 year warranty (T&Cs apply)
