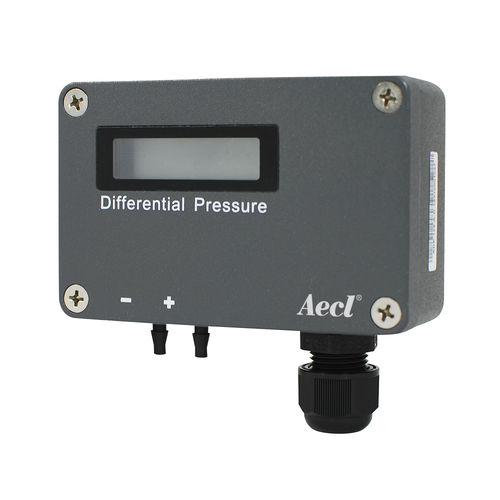

Differential pressure transmitter ADP Series
thermal4-20 mA0-10 V

differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
Add to favorites
Compare this product


Pressure type
4-20 mA, 0-10 V, RS-485, Modbus RTU
Supply voltage
24VAC, 12VAC, 36VAC, 24 Vdc, 12 Vdc, 32VDC, 36 VDC
for air, for nitrogen, for oxygen
Protection level
rugged, IP54
process, for building automation, for medical applications, for boiler, for clean rooms
Other characteristics
precision, CE, temperature-compensated, smart, OEM, economical, with selectable measurement range, with LCD display, high-resolution
Pressure range

Max.: 500 Pa
(0.07 psi)

Min.: -500 Pa
(-0.07 psi)


Dear visitor: Aecl is looking for a partnership for Distributor and system integrator. *If you have any query, please contact us by Direct Industry or by email contact@aecl.com.tw Aecl ADP Differential Pressure Transmitter [Features] ● Media compatibility: air, N2, O2 ● Measurement principle: Thermal flow-through principal ● Measurement range: -25~25 Pa/ -125~125 Pa/ -500~500 Pa (Optional) ● Power supply: 12 ~ 36V AC/DC,50/60Hz ● Signal outputs:  DC 4 ~ 20mA (Loading resistance ≦500Ω)  DC 0 ~ 10 V(Loading resistance ≧50KΩ)  RS485 (Modbus RTU) ● Offset stability: < 0.1 pa/ yr. ● Protection rate: IP54 ● Cast Material: Cast aluminum ● Dimensions (mm): 98(H) x 64(W) x 34(D) ● Optional LCD display ● CE certification ● Maintenance-free for normal indoor applications [Applications] ● Commercial building ● Laboratory ● Smoking room ● Clean room ● Negative pressure isolation room ● Hospital ● Medical Center ● Indoor places where would be required to measure pressure difference
