Ultrasonic flow meter AFU-800volumefor waterfor chemicals
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic
- Type
- volume
- Fluid
- for water, for chemicals, for wastewater, for hot water, for beer, for ink
- Installation
- clamp-on, wall-mounted
- Communication
- 4-20 mA, with pulse output, RS485
- Protection level
- IP64
- Applications
- for water treatment, for the food industry, for the beverage industry, HVAC, for environmental analysis
- Other characteristics
- high-accuracy, with LCD display, with LED display, economical, maintenance-free, with counting function, combined
Description
Dear visitor:
Aecl is looking for a partnership for Distributor and system integrator.
*If you have any query, please contact us by Direct Industry or by email [email protected]

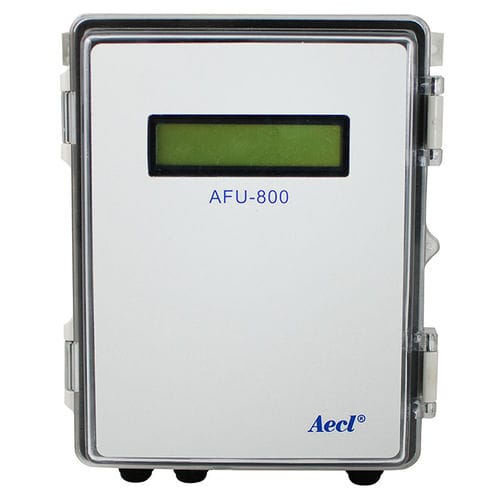

Aecl AFU-800 Ultrasonic Flow Sensor
[Features]
● Measurement: Flow rate
● Measuring range:
Flow rate: 0~±30m/s;
Temperature (for heat meter function): Standard: -30~90℃; High temp. -30~160℃
● Pipe size: DN15~DN3000 (0.59~118.11 inch)
● Accuracy: Flow rate: ±1.0% (for 0.4~16m/s)
● Signal outputs: RS485, 0/4~20mA output (Max. load 750Ω), OCT output: 0~999Hz and ● Relay output
● Power supply: 85 ~260V AC，50/60Hz
● Protection: Transmitter IP65
[Applications]
● Water treatment
● Water Management system
● HVACR System
● Energy saving system
● Places where would be required to measure water, pure water, sea water, industrial wastewater, chemical liquid, ethyl, alcohol (Turbidity≤10000ppm, less bubbles)
