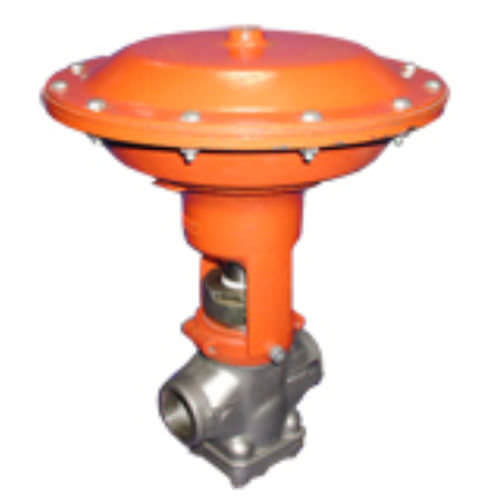

Diaphragm valve 7412 B seriespneumatically-operatedcontrolfor water
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- pneumatically-operated
- Function
- control
- Media
- for water
- Body
- female
- Number of channels
- 2/2 way
- Other characteristics
- normally closed
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 42 bar
(609.2 psi)Min.: 2 bar
(29 psi)- Temperature
Max.: 205 °C
(401 °F)Min.: 180 °C
(356 °F)- Flow rate
Max.: 36 m³/h
(1,271.33 ft³/h)Min.: 3 m³/h
(105.94 ft³/h)
Description
2/2 Way Pneumatic Diaphragm Operated Normally Closed Valves
Screwed Female End Type Body For High Duty,
On-Off Application
Body and End Piece: Investment Casted ASTM-A,
351CF8 (St.St. 304)/CF8M(St.St. 316)
For control of air, water, oil, gas, steam, hydraulic oil specially where heavy duty operations are called for, specially on tyre and tube building presses, power generation, atomic energy, chemical & petrochemical plant, PSA nitrogen system, air and gas dryers, gas generators and others.
Other Avcon Controls PVT. Ltd. products
Pneumatic ON/OFF Valves
