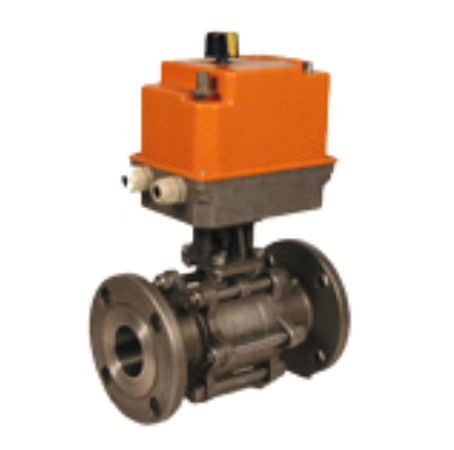

Ball valve 2570 F serieselectrically-operatedfor controlfor gas
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-operated
- Function
- for control
- Media
- for gas
- Body
- 3-piece
- Number of channels
- 2-way
- DN
Min.: 15 mm
(0.591 in)Max.: 100 mm
(3.937 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 12 bar
(174 psi)- Temperature
Min.: 180 °C
(356 °F)Max.: 200 °C
(392 °F)- Flow rate
Min.: 10 m³/h
(353.15 ft³/h)Max.: 875 m³/h
(30,900.33 ft³/h)
Description
Avcon is producing 3-piece Ball Valves with ISO-5211 mounting pad. The Valves are provided with mounting bracket, couplers for fitting Electric Actuators. The Valves are available with Electric Actuators-Motorised to Open and Motorised to Closed type (No Fail Safe, Spring Return System available). These Electric operated Ball valves are available with various options. For Electric Actuator details, please refer to leaflet (EA-21, EA-50/70, AM Series). The face to face dimensions for flanged end valves are as per DIN 3202-1-1984 and EN 558-1-1995. However for Screwed End Ball Valves face to face dimensions are as per our this leaflet.
