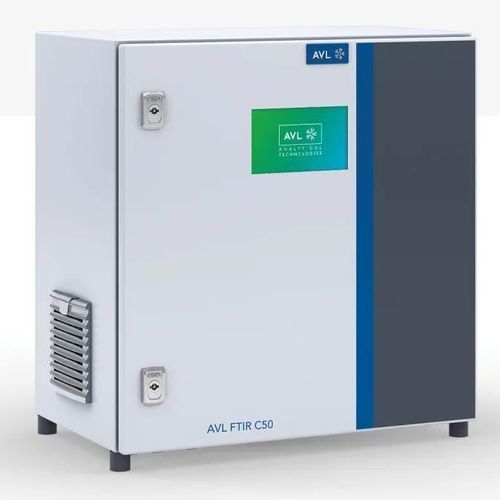

Process gas analyzer FTIR C50™

waterammonianitrogen dioxide

Overview
The AVL FTIR C50™ is a compact multi-component FTIR gas analyzer for continuous measurement in industrial applications. It is engineered for straightforward operation in harsh environments. The integrated low-drift FTIR spectrometer ships with a long-term stable factory calibration and typically requires only a zero-gas adjustment before measurement. No operational gases or liquid nitrogen are required, making the system suitable for long-term, unattended measurement tasks.

Key Capabilities

• Simultaneous, highly dynamic measurement of multiple exhaust and process gas components within a single gas cell (no time alignment required).
• Low-drift FTIR spectrometer with long-term stable factory calibration.
• Optional integrated 7" display and web-interface for control and monitoring via notebook or smartphone.
• Air-conditioned variant available for ambient temperatures above 40 °C to ensure reliable operation.
• Integrated plausibility checks during warm-up and runtime to ensure consistent measurement quality.

Benefits

• Versatile multi-component analysis that supports both process control and emissions monitoring requirements.
• Reduced long-term operational costs through stable FTIR calibration and minimal calibration gas needs.
• Compact, wall-mountable design for space-efficient installation.
• Minimal operational overhead: no additional operational gases or liquid nitrogen necessary.
• Faster data interpretation: synchronous measurement of all components in one gas cell eliminates time-alignment processing.

Measurement & Operation

• Spectrometer resolution: 0.5 cm-1 at 1 Hz data rate.
• Control: optional 7" display; web-interface access for remote control and monitoring.
• Configurable measuring ranges and selectable gas components to match application requirements.
• Integrated plausibility checks and low-drift FTIR reduce required operational interventions.

Measured Components (examples, depending on configuration)
CO, CO2, H2O, NO, NO2, N2O, NH3, CH4, C2H2, C2H4, C2H6, C3H6, C3H8, C4H10, C2H5OH, CH3OH, CH3CHO, HCHO, HCOOH, i-C5, n-C5, n-C8, AHC, O2 (by ZrO2 sensor)

Technical Details (table)
Dimensions (W x D x H): 600 x 350 x 600 mm; 900 x 350 x 600 mm (with air conditioning)
Weight: approx. 28 kg
Power Supply: 100 - 230 VAC
Measurement Principle: FTIR (Fourier Transform InfraRed) spectroscopy
Response Time (t10 to t90): ≤ 2.5 s @ 5 l/min
Ambient Temperature: -5 ... +40 °C (23 – 104 °F); -5 ... +50 °C (23 – 122 °F) with air conditioning

Specifications / Technical specifications

• Resolution: 0.5 cm-1 at 1 Hz data rate.
• Optional integrated 7" display; web-interface control supported.
• Selectable gas components and measuring ranges per application.
• Air-conditioned variant available for operation up to +50 °C.
• Low-drift FTIR with long-term stable factory calibration; only zero-gas adjustment required.
• Response time: ≤ 2.5 s @ 5 l/min.
• Dimensions: 600 x 350 x 600 mm (standard); 900 x 350 x 600 mm (with air conditioning).
• Weight: approx. 28 kg.
• Power supply: 100 - 230 VAC.
