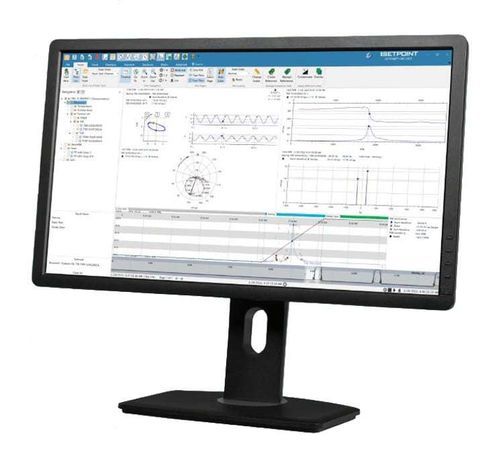

Visualization software SETPOINT

vibration analysisdiagnosticvibration test

Product Overview: SETPOINT vibration monitoring software provides comprehensive online condition monitoring for critical rotating and reciprocating machinery. Designed for use in hydrocarbon processing, petrochemical, power generation, and other industries, it offers powerful visualization tools for analysis and diagnostics. Applications: - Steam, gas, and hydraulic turbines - Diesel and gas engines - Compressors (axial, centrifugal, reciprocating) - Pumps (critical and auxiliary) Key Features: - Visualize waveform data and interpret machine vibration data with a single click - Direct connection to VC-8000 machine protection system for data acquisition—no extra hardware required - Integrates with AVEVA™ PI System™ for real-time and historical data visualization - Navigate to points of interest, view trends, alarms, and vibration waveforms - Export and share data as .CMS files via email, data transfer, or USB Data Flow Management: - Seamless integration with AVEVA PI System for unified condition monitoring - Stores all vibration and performance data in a single system - Acts as a “PI System gateway,” digitizing raw vibration signals from sensors or underlying protection systems (Bently Nevada, SKF, Emerson/CSI, Vibro-Meter, Brüel & Kjær) - Patented change detection technology prevents data overload while ensuring high-fidelity capture of important events - Supports up to 300 vibration data channels per PI Server Advantages: - Open interface for communication of all data - Unmatched ease of use and direct visualization of plots, points, and parameters - Easy review of trend changes over time - Highly efficient, near-lossless data compression SETPOINT Utilities: - Configuration Utility: Create, retrieve, display, and modify rack configurations offline or online. Clone channels or groups for rapid setup. - Maintenance Utility: For firmware upgrades, temporary channel/relay bypass, hardware audits, and diagnostics retrieval. - Simulation Utility: Simulate operation for training and demonstration without physical connections. Industrial Use Specifics: - Unmatched configuration ease with spreadsheet-like interface (copy-paste from/to Excel) - Clone and edit channel groups for rapid deployment - Organize channels by attributes for quick comparison and anomaly detection - Reduced errors—project documentation is faster and less error-prone - Secure configuration via USB cable only (not over network ports) - Immediate error feedback for invalid settings - Free software distribution—no licensing hassle, easy sharing and collaboration Functionalities: - Open, user-friendly interface - Easy combination with other plant data - Data log reading - Near-lossless data compression - Support for quick-mount wireless sensors - Powered by AVEVA™ PI System™ - Affordable, adaptable, scalable - Multiple intuitive data visualization options - Works with existing data management systems - Comprehensive machine health overview - No special configuration required - Easy to use and install - Transforms vibration data into actionable business value for predictive maintenance - Advanced protection for critical assets - Accurate, reliable, and relevant data for safe, effective decisions - Compatible with any underlying machine protection system - Meets modern cybersecurity requirements - Seamless integration of process and mechanical status data - Fully customizable user interface - Faster troubleshooting/reduced downtime by combining vibration and process data in a single repository - Reduced IT load—support and training limited to one system - Secure operations—organization-wide secure, fast, easy access - Improved collaboration—data exportable and shareable in easy-to-view formats without extra fees Technical Specifications / Features List: - Open and easy-to-use interface - Direct integration with AVEVA™ PI System™ - Supports up to 300 vibration channels per PI Server - Works with Bently Nevada, SKF, Emerson/CSI, Vibro-Meter, Brüel & Kjær sensors - Spreadsheet-style configuration (Excel compatible) - Offline and online configuration - USB-only secure configuration - Free software and documentation - Advanced data compression - Multiple visualization and export options - Comprehensive alarm and trend management - Simulation and training utility included
