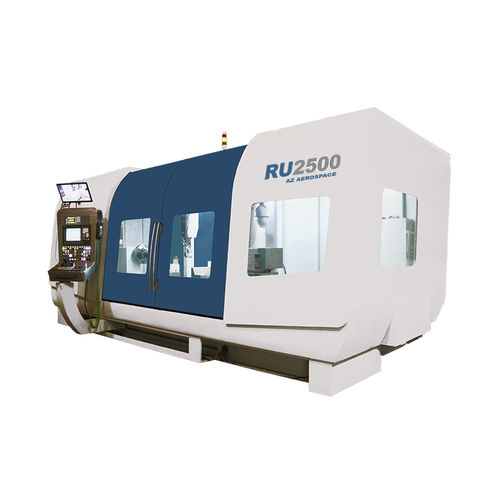

Cylindrical grinding machine RU2500

for metal sheetsfor gearsfor shaft

AZ Universal grinding machines range has been designed to fulfil the requirements of a wide range of applications that combine external, internal, face and taper grinding of components such as: transmission shafts, electric motor shaft, gas turbine shafts, railway shafts, machine tools shafts, landing gear components, etc. SPECIFICATIONS Height centers 400 [mm] Max lenght of external grinding 2500 [mm] MANUFACTURING QUALITY The machine can have WHEELHEAD MOVE or TABLE MOVE Base made of Composital X and Z axis movement on linear guideways Headstock can swivel Tailstock with hydraulic constant pressure controlled by load cell Different clamping system and workpiece support GRINDING Wide range of wheelhead configurations: straight, angular, internal and “B”- axis Silicon carbide, corundum, CBN and diamond grinding wheels allow grinding of different materials and surface treatments including Chromium and HVOF TECHNOLOGY The machine can be supplied with different measurement systems according with customer requirements. APPLICATIONS AEROSPACE-LOCOMOTIVE-ENERGY-OIL&GAS: transmission shafts, electric motor shaft, gas turbine shafts, railway shafts, machine tools shafts, landing gear components
