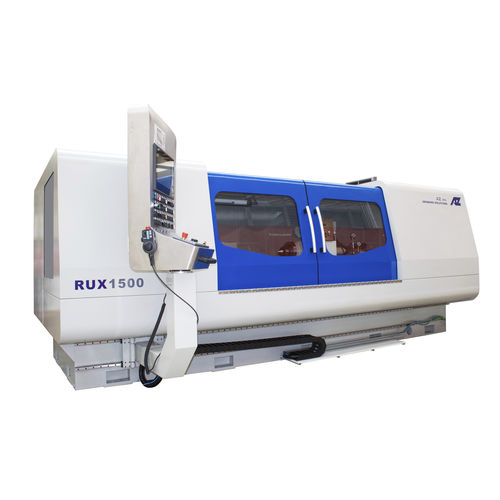

Cylindrical grinding machine RUX1500

workpieceuniversaltravelling head

RUX is an universal grinding machine CNC controlled. The machine is designed with grinding wheel moves on base by ball screw system and linear guideways. The workpiece is clamped by headstock fixed on the base and tailstock moves easily on the table. Base is specifically designed to obtain the best result between structural deformations and vibration dumping. As optional the table can swivel CNC or manually controlled. SPECIFICATIONS Height centers 405 [mm] Swing over table 600 [mm] Max lenght of external grinding 1550 [mm] Max diameter of grinding wheel 760 [mm] Width of grinding wheel 100 [mm] FEATURES headstock can swivel manually fixed grinding wheel head automatic fixed point dresser grinding wheel/workpiece contact control grinding wheel/diamond contact control and tool usury recovery system crash control wheel balancing control with automatic balancing device workpiece positioning control with touch probe APPLICATIONS Mechanical components (grinding wheels)
