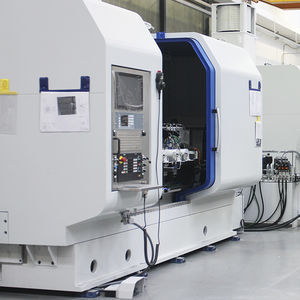

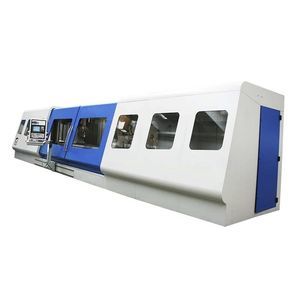

External cylindrical grinding machine RUX1800

internal cylindricalworkpiecefor gears

RUX is an universal grinding machine CNC controlled. The machine is designed with grinding wheel moves on base by ball screw system and linear guideways. The workpiece is clamped by headstock fixed on the base and tailstock moves easily on the table. Base is specifically designed to obtain the best result between structural deformations and vibration dumping. As optional the table can swivel CNC or manually controlled. SPECIFICATIONS Height centers from 405 [mm] Swing over table from 400 [mm] Max lenght of external grinding 1850 [mm] Max diameter of grinding wheel 660 [mm] Width of grinding wheel 100 [mm] FEATURES grinding wheel head: manually B-axis rotation ± 20° hydraulic vertical engagement spindle automatic fixed point dresser grinding wheel/workpiece contact control grinding wheel/diamond contact control and tool usury recovery system crash control wheel balancing control with automatic balancing device 3 points automatic steady rest for internal grinding APPLICATIONS mechanical components (pneumatic hammer)
