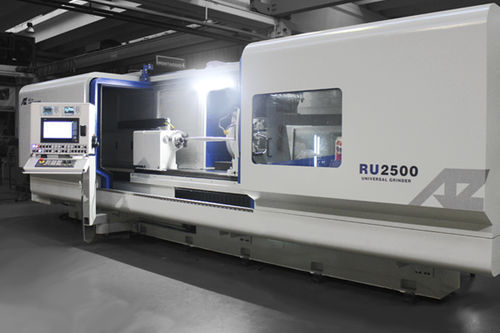

Workpiece grinding machine RU2500

universalwith moving tableCNC

AZ RU universal grinding machines are high performance machines designed for customers who have to work with high precision tolerances. Constructive features are projected to ensure maximum machine stability during all the process phases. Thanks to a wide combination of wheelhead spindles, different types of machining can be integrated in a single clamping: external, internal, shoulder, face and taper grinding. The grinding process is constantly monitored thanks to high-level and last-generation measurement and controls systems. The RU machines range meets the requests of a wide range of industries: aerospace, railways, automotive, energy, precision mechanical components. SPECIFICATIONS Height centers 400 [mm] Max lenght of external grinding 2500 [mm] Diameter of grinding wheel for OD 400-600 [mm] MANUFACTURING QUALITY table moves on Z axis, wheelhead moves on X axis fixed grinding wheel head 2 points manual steady rest for external grinding automatic fixed point dresser grinding wheel/workpiece contact control grinding wheel/diamond contact control and tool usury recovery system crash control wheel balancing control with automatic balancing device in-process diameter measuring with fork GRINDING Wide range of wheelhead configurations: straight, angular, internal and “B”- axis Silicon carbide, corundum, CBN and diamond grinding wheels allow grinding of different materials and surface treatments including Chromium and HVOF APPLICATIONS AEROSPACE-LOCOMOTIVE-ENERGY-OIL&GAS: transmission shafts, electric motor shaft, gas turbine shafts, railway shafts, machine tools shafts, landing gear components
