thermal flow meter / for liquids / digital / ultra-compact
F7M

Add to MyDirectIndustry favorites
Compare this product
thermal flow meter / for liquids / digital / ultra-compact thermal flow meter / for liquids / digital / ultra-compact - F7M
  • Thermal flow meter / for liquids / digital / ultra-compact
{{requestButtons}}

Characteristics

  • Technology:

    thermal

  • Fluid:

    for liquids

  • Other characteristics:

    digital, ultra-compact, high-accuracy, analog output, plastic tube, in-line, with pulse output, digital output, with alarm function, IP65, miniature, PFA, chemical-resistant, glass

  • Applications:

    industrial, for low flow rates, for the pharmaceutical industry, for dosing, for pumping applications, laboratory, for environmental analysis, for hydraulic installations, micro-flow

  • Process pressure:

    Min.: 0 bar (0 psi)

    Max.: 5 bar (72.52 psi)

  • Process temperature:

    Min.: 5 °C (41 °F)

    Max.: 50 °C (122 °F)

  • Volumetric flow rate:

    Min.: 0 l/min (0 us gal/min)

    Max.: 0.1 l/min (0 us gal/min)

Description

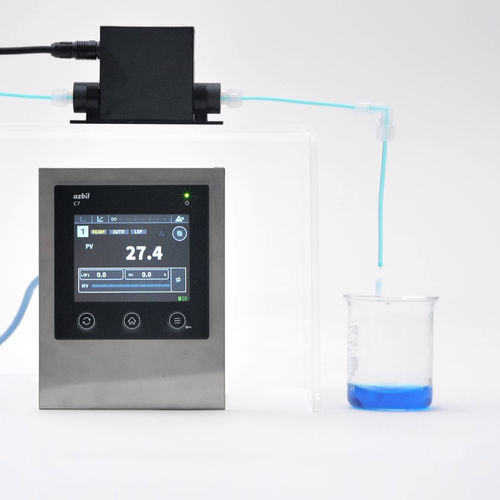

Micro Flow Rate Liquid Flow Meter
By combining a thermal MEMS sensor and a highly corrosion-resistant quartz glass flow path, the product can measure micro flow rates liquid flow of under 50 mL/min with a high degree of repeatability, which would be a difficult for traditional measurement methods.
Product development was based on the concept of adopting a measurement method that is minimally susceptible to changes in the state of the fluid (e.g., bubbles, pulsation, fluid temperature changes), and making the product user-friendly, with easy-to-use correction functions for measured fluids (correction based on the thermal conductivity of the fluid).
Measuring the instantaneous and integrating flow rates instead of previous methods (e.g., measuring the pump rotation speed, measuring the weight, or managing the fluid supply time) contributes reliable quality management and detection of anomalies in process based on measured values.

* Measures 50 mL/min or lower
Features the thermal flow measurement principle using MEMS sensing technology.
Measuring micro flow rates under 50 mL/min of liquid, which traditionally has been difficult, is now possible.
(Measurement range: 0.1 to 10 mL/min, 0.3 to 30 mL/min, 0.5 to 50 mL/min)

* Compact, light-weight, and easy to install
This model is more compact and lighter than its predecessors.
By using the mounting bracket (including in a package), it can be easily installed on a surface (for horizontal pipe connection).
It can also be installed for vertical pipe connection.
A separate converter (amplifier) is not required.
