UV-Vis-NIR spectrometer Quest™ Xlaboratoryprocessfor analysis
Add to favorites
Compare this product
Characteristics
- Type
- UV-Vis-NIR
- Domain
- laboratory, process, for analysis, R&D, industrial, for scientific applications, measurement, for spectral analysis, cost-effective, for OEM
- Configuration
- compact, modular
- Detector type
- CCD
- Other characteristics
- USB, multi-channel, grating, full-spectrum
- Wavelength
Min.: 200 nm
Max.: 1,050 nm
Description

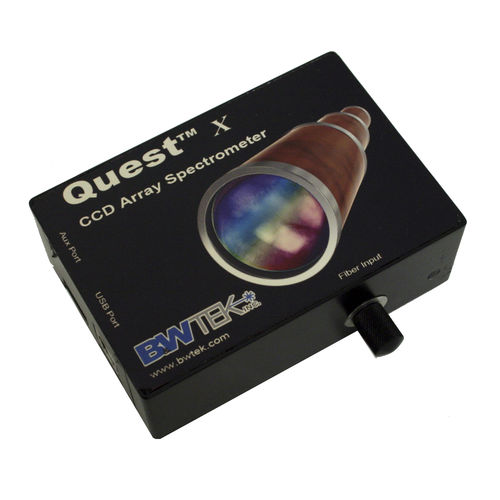

The Quest X is a linear CCD array spectrometer optimized for UV and NIR performance using a low stray light optical bench. It features a 2048 element detector, built-in 16-bit digitizer, USB 2.0 interface with a >2.0 MHz readout speed, and external trigger. The Quest X is temperature compensated, which greatly reduces the thermal drift to ~15 counts/deg C. This gives improved stability by decreasing baseline drift and sustaining the dynamic range.
The Quest X is ideal for most UV, Vis, and NIR applications with spectral configurations from 200nm to 1050nm and resolutions between 0.5nm and 4.0nm. Custom configurations and RS232 communication interface are available for OEM applications.
This spectrometer is an essential building block for total solutions. System development and application support are available for OEM applications.
The Quest X is ideal for:
UV, Vis, and NIR: Spectroscopy / Spectroradiometry / Spectrophotometry
Absorbance / Reflectance
Wavelength Identification
OEM Systems Integration
