UV-vis spectrometer Quest™ Ulaboratoryfor analysisindustrial
Add to favorites
Compare this product
Characteristics
- Type
- UV-vis
- Domain
- laboratory, for analysis, industrial, for quality control, for spectral analysis, for spectroscopy, for OEM, for LED lighting, for research and development, for teaching
- Configuration
- compact, modular
- Detector type
- CCD
- Other characteristics
- high-sensitivity, USB, high-speed, full-spectrum, reflectance
- Wavelength
Max.: 850 nm
Min.: 200 nm
Description

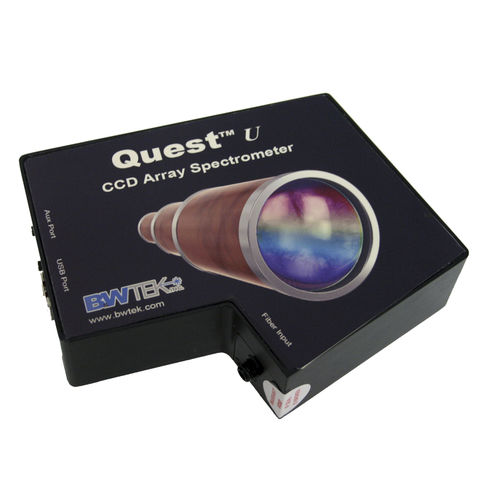

The Quest™ U is a linear CCD array spectrometer optimized for UV performance using a low stray light optical bench. It features a 2048 element detector, built-in 16-bit digitizer, USB 2.0 interface with a >2.0 MHz readout speed, and external trigger. The Quest™ U is temperature compensated, which greatly reduces the thermal drift to ~15 counts/deg C. This gives improved stability by decreasing baseline drift and sustaining the dynamic range.
The Quest™ U is available in two standard spectral configurations: 200nm - 400nm and 200nm - 850nm. Custom configurations and RS232 communication interface are available for OEM applications.
This spectrometer is an essential building block for total solutions. System development and application support are available for OEM applications.
Applications:
UV, Vis, and NIR: Spectroscopy/Spectroradiometry/Spectrophotometry
Wavelength Identification
Absorbance
Reflectance
OEM Optical Instrumentation
The Quest™ U Features
* Low Stray UV Light
* UV and UV/NIR Standard
* 2.0 MHz Readout Speed
* Plug-and-play USB 2.0
