Characteristics

  • Type:

    optical emission

  • Field:

    process

  • Other characteristics:

    multi-channel, USB, CCD, Czerny-Turner

  • Wavelength:

    Max.: 850 nm

    Min.: 200 nm

Description

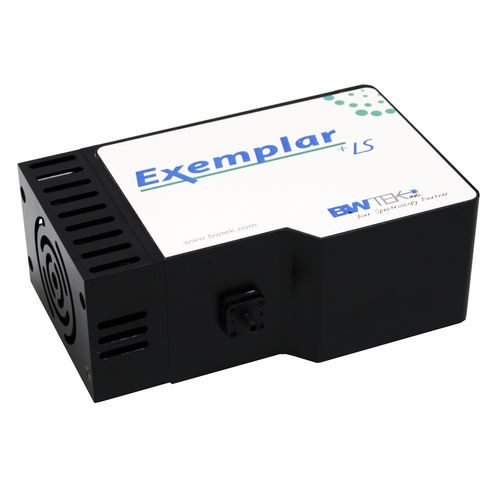

Low Straylight Smart CCD Spectrometer
The Exemplar® LS is a smart CCD spectrometer optimized for low straylight
by utilizing an unfolded Czerny-Turner spectrograph. It features on board
data processing, USB 3.0 communication, and temperature compensation.



The Exemplar® LS is a smart CCD spectrometer optimized for low straylight
by utilizing an unfolded Czerny-Turner spectrograph. It features on board
data processing, USB 3.0 communication, and temperature compensation.
The Exemplar LS is also optimized for multi-channel operation, featuring
ultra-low trigger delay and gate jitter. Additionally, the Exemplar LS features
a 2048 element detector and built-in 16-bit digitizer with greater than 2.0
MHz readout speed.

The Exemplar LS is available in the following standard configuration:
wavelength range of 200-850nm, 25μm slit, an LVF filter, a ruled grating
(800mm/250nm), and a spectral resolution of 1.5nm.
Applications:

UV, Vis, and NIR: Spectroscopy / Spectroradiometry / Spectrophotometry
Absorbance / Reflectance / Transmittance
Kinetic Reaction Monitoring
Transient Spectral Analysis
Wavelength Identification
OEM Systems Integration
Multi-point Sampling
