U.L. Recognized – E56973
C.S.A. Certified – 016386-0-000
Applications
1.Baking, drying, packaging, and preheating.
Features

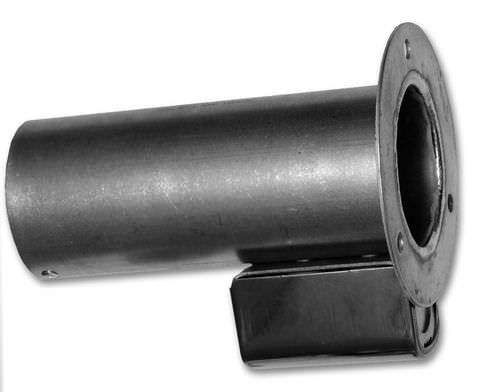

•This Maximum Flow Air Heater design is encased within a 2 3/8″O.D. tube with a cross frame heating element for minimum resistance to air flow. It has a practical operating range of up to 200 CFM with temperatures up to 600°F (315°C).
•For easier mounting, Backer Hotwatt can supply a 4″O.D. mounting flange on one or both ends.
•The heater is available in either aluminum or stainless steel.
•Its design features include a nickel-chrome heating element insulated by ceramic beads on a stainless steel support frame, firmly secured to the inside of the tube.
•Designed for high volume and moderate temperature.
•Low pressure for use with blowers and recirculating air.
•Made in U.S.A.
