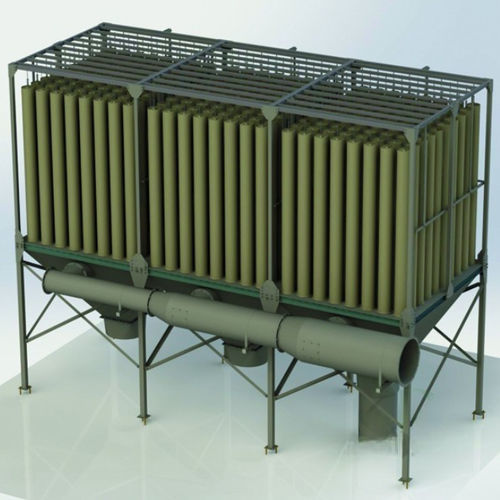

Mechanical filter unit BFF-M-M3

bagfor the food industrydust

Description
Stationary dust collection unit designed for continuous operation in general industrial applications.

Overview
Bag filters with mechanical regeneration remove fine dust from extraction streams generated by various technological units and processes.

Features

• Working element: filter bags mounted on hangers or fitted to a vibrating plate
• Regeneration method: mechanical (vibrating plate)
• Maintenance access: from above
• Equipped with an automatic control system enabling automatic operation
• Maximum cleaned gas temperature: up to 80 °C
• Filtration efficiency: over 99%

Scope of application
Suitable for mining, cement and construction industries, food processing, agro-industrial facilities and similar industrial sectors.

Additional information (table)
Product range: BFF-M-M3-(280-360)
Capacity, thousand m³/h: 13.3-16.8
Filtration area, m²: 280-360
Number of filtering elements, pcs.: 240

Technical specifications

• Product range: BFF-M-M3-(280-360)
• Model designation: BFF-M-M3
• Capacity (thousand m³/h): 13.3-16.8
• Filtration area (m²): 280-360
• Number of filtering elements (pcs): 240
• Working element: filter bags on hangers or installed onto a vibrating plate
• Regeneration method: mechanical (vibrating plate)
• Maintenance access: from above
• Automatic control system: yes (supports automatic mode)
• Max temperature of purified gases: up to 80 °C
• Filtration efficiency: over 99%
