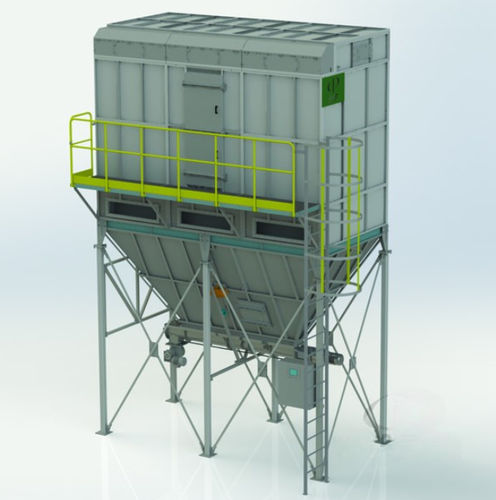

Particulate filter BFF-I-M3-(200-300)-B

dustsleevebag

Description
Stationary pulse-jet bag filter for industrial dust collection. Available in general industrial or explosion-proof (ATEX) design. Filter elements are installed from the dirty-gas chamber side; filter bags and cages have specific constructions to facilitate access and replacement.

Peculiarities

• Working element: filter bags
• Regeneration: compressed air impulse (pulse jet)
• Maintenance: access to filter elements from the dirty-gas chamber side
• Automatic control system included for automatic operation
• Maximum gas temperature: up to 280 °C
• Filtration efficiency: over 99%

Series description
Pulse jet bag filter series B is designed to remove fine dust from extraction and process emissions. The series is optimized for industrial sites with height limitations and compact layouts.

Scope of application
Suitable for mining, cement and construction industries, ferrous and non-ferrous metallurgy, power plants, waste incineration and other processes requiring fine dust removal.

Additional information (table)
Product range: BFF-I-M3-(200-300)-B
Capacity (thousand m³/h): 11.2–26.0
Filtration area (m²): 200–300
Number of filtering elements (pcs): 240

Technical specifications

• Model / Product range: BFF-I-M3-(200-300)-B
• Designed and produced according to TU U 28.2-31700904-001: 2018
• Design options: general industrial or explosion-proof (ATEX compliant)
• Working element: filter bags (pulse jet regeneration)
• Regeneration method: compressed air impulse (pulse jet)
• Maintenance: access from dirty gas chamber side
• Automatic control system: included for automatic operation
• Maximum gas temperature: up to 280 °C
• Filtration efficiency: over 99%
• Capacity (thousand m³/h): 11.2 - 26.0
• Filtration area (m²): 200 - 300
• Number of filtering elements: 240 pcs.
• Typical applications: mining, cement, construction, ferrous and non-ferrous metallurgy, power plants, waste incineration
