Fabric expansion joint

rectangularflangeaxial

Overview

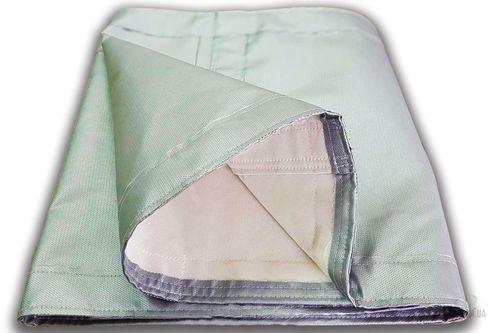

Fabric expansion joints are flexible compensators designed for gaseous media and aggressive environments. Constructed from high-performance materials, they operate under pressure or vacuum and provide multidirectional flexibility. Gas-tight options ensure reliable sealing across a wide temperature range.

Function and application
These expansion joints compensate thermal expansion, misalignment and mechanical vibration in ducting and piping systems. Typical uses include flue gas ducts, heat exchanger casings and industrial exhaust lines where vibration isolation and gas sealing are required.

Construction and materials
Manufactured in single-layer or multi-layer assemblies using technology-grade fabrics and sealing layers selected for temperature and chemical resistance. Designs may incorporate gas-tight membranes, reinforcement layers and protective coatings to extend service life under load.

Sizes and fastening
Dimensions, flange types and fastening arrangements are custom-made to customer specifications for integration with existing equipment and standard flanges.

Additional information (table)
Sizes, types of fasteners: according to customer's requirements
Operating temperature: up to 1000 °C
Working pressure: from -0.2 to 0.3 bar
Composition: single-layer or multi-layer assemblies of high-technology materials

Characteristics / technical specifications

• Material resistance: suitable for high temperatures and aggressive chemical environments
• Operation: suitable for pressure and vacuum conditions
• Elasticity: compensates deformation in multiple directions
• Sealing: gas-tight options available for wide temperature range
• Operating temperature range: up to 1000 °C
• Working pressure range: from -0.2 to 0.3 bar
• Sizes and fasteners: customizable per customer requirements
• Composition: single-layer or multi-layer high-technology materials
