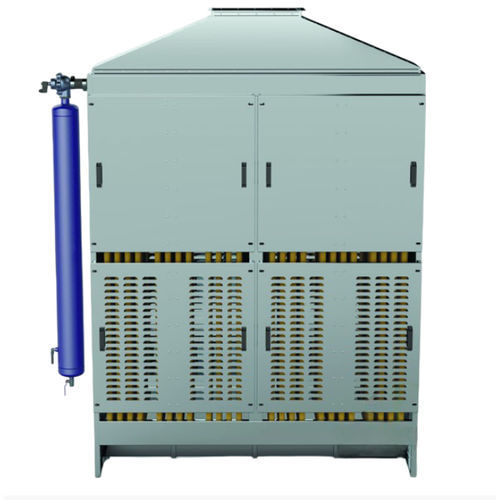

Bag filtration unit BFF-I-M1-30-B

dusthigh-throughputcompact

Product overview
The dusty air generated during grain unloading is drawn out of the working area by a fan, cleaned by the bag filter and either discharged to the atmosphere or recirculated to the intake pit area. Dust collected on the filter elements is discharged directly into the intake pit.

Application
Pulse-jet bag filter BFF-I-M1-30-B-L is designed for grain unloading premises and intake pits. Its proprietary filter elements provide a compact footprint and high throughput suited to agricultural reception points.

Layout

• Along the intake pit, opposite the product unloading point
• Directly above the intake pit
• On the edge of the intake pit with an additional dust-discharge tray
• On a conveyor with dust discharged into a separate hopper
• The fan can be installed inside the intake pit area or externally

Technical characteristics / specifications

• Product range: BFF-I-M1-30-B-L
• Regeneration type: pulse-jet
• Capacity: 6.5–11.0 thousand m³/h
• Filtration area: 30 m²
• Number of filter elements: 24
• Category: BFF pulse-jet bag filters
