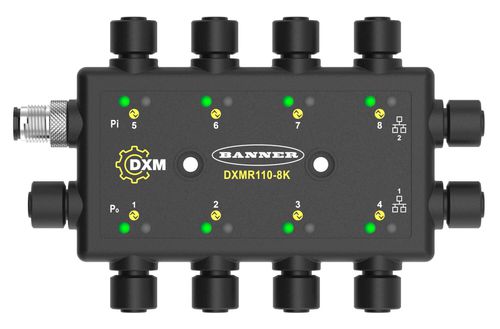

EtherNet/IP master module DXMR110

analogProfiNetModbus TCP

The DXMR110-8K 8-Port IO-Link Master is a compact smart controller that consolidates, processes, and distributes data from multiple sources. Communicating with up to eight different IO-Link devices, the DXMR110 converts signals to EtherNet/IP, Modbus/TCP, and PROFINET, and can serve as a system gateway to the Industrial Internet of Things (IIoT). Multiprotocol support allows users to stock one part that can be used with a variety of industrial control systems Compact form factor weighs less than half of most competing designs, enabling better performance in weight- and size- critical applications such as robotic end-of-arm tooling where excess weight can impact speed M12 connections exit from the side rather than the top, providing new options to improve cable bend radius and avoid cable damage Two discrete inputs and one discrete output on each port give flexibility to system designers and simplify system architecture By locating IO-Link Masters near devices on the machine, it can eliminate I/O cards on the PLC, along with excess wiring to/from the control panel
