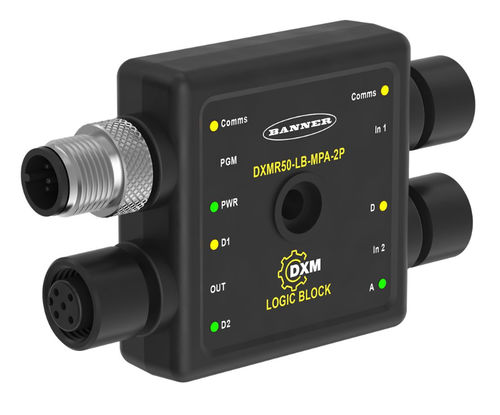

Analog master module DXMR50

digitalModbusRS-485

Overview
Bring logic out of the cabinet and into the field with compact, sealed devices that turn discrete, analog, and Modbus signals into configurable control. DXMR50 Logic Blocks deliver remote I/O with built‑in control—no PLC, DIN rail, or panel wiring required.

Key features

• Run logic and arithmetic functions (AND, OR, counting, on‑delay, scaling, calculations, thresholds) without a PLC
• Free configuration software for easy setup—no programming expertise required (Banner’s Logic Block Configuration Software)
• Nine model variants combining discrete, analog (selectable 0–10 V or 4–20 mA), and Modbus I/O to match diverse I/O requirements
• IP67/IP68 sealed compact housing for field installation—no enclosure, DIN rail, or panel wiring required
• Onboard LEDs on both sides for quick diagnostics; mountable in either orientation
• Supports Modbus RTU (RS-485), analog sensors, and discrete PNP signals for flexible signal integration

Common application notes

• Use DXMR50 Logic Blocks to implement local control (e.g., threshold alarms, simple sequencing, counting, and aggregation) at the machine or sensor location
• Simplify retrofit or distributed control installations by moving logic to the field and avoiding cabinet rewiring and PLC I/O expansion
• Combine Modbus devices and analog/discrete sensors into a single compact logic module for tank‑level indication, jam detection, motor/drive signaling, and local status outputs

Model family summary
The DXMR50 family is available in nine configurations derived from three input types × three output types. Input types include combinations of Modbus ports, analog (0–10 V or 4–20 mA) and discrete PNP inputs. Output options per model include two PNP discrete outputs, a 4–20 mA analog output + one PNP output, or a 0–10 V analog output + one PNP output.

Configuration & deployment

• Configure logic using Banner's free configuration software (no PLC required)
• Install directly on the machine or near sensors—rugged sealed enclosure eliminates need for cabinet or panel wiring
• Onboard status LEDs make troubleshooting and commissioning fast

Technical specifications

• Series name: DXMR50 Logic Blocks
• Input types: Modbus RTU (RS-485), analog (selectable 0–10 V or 4–20 mA), discrete PNP
• Output options: two PNP discrete outputs; or 4–20 mA analog output + PNP discrete; or 0–10 V analog output + PNP discrete
• Number of product variants: 9 (3 input configurations × 3 output configurations)
• Ingress protection: IP67 / IP68 (field‑sealable housing)
• Mounting: field mountable, installable in either direction; no DIN rail or panel required
• Local diagnostics: LEDs on both sides showing input/output and power status
• Configuration: free PC configuration software (Logic Block Configuration Software)
• Typical applications: local control without PLC, tank‑level indication, jam detection, machine status indication, simple sequencing and counting
